Step1: Product

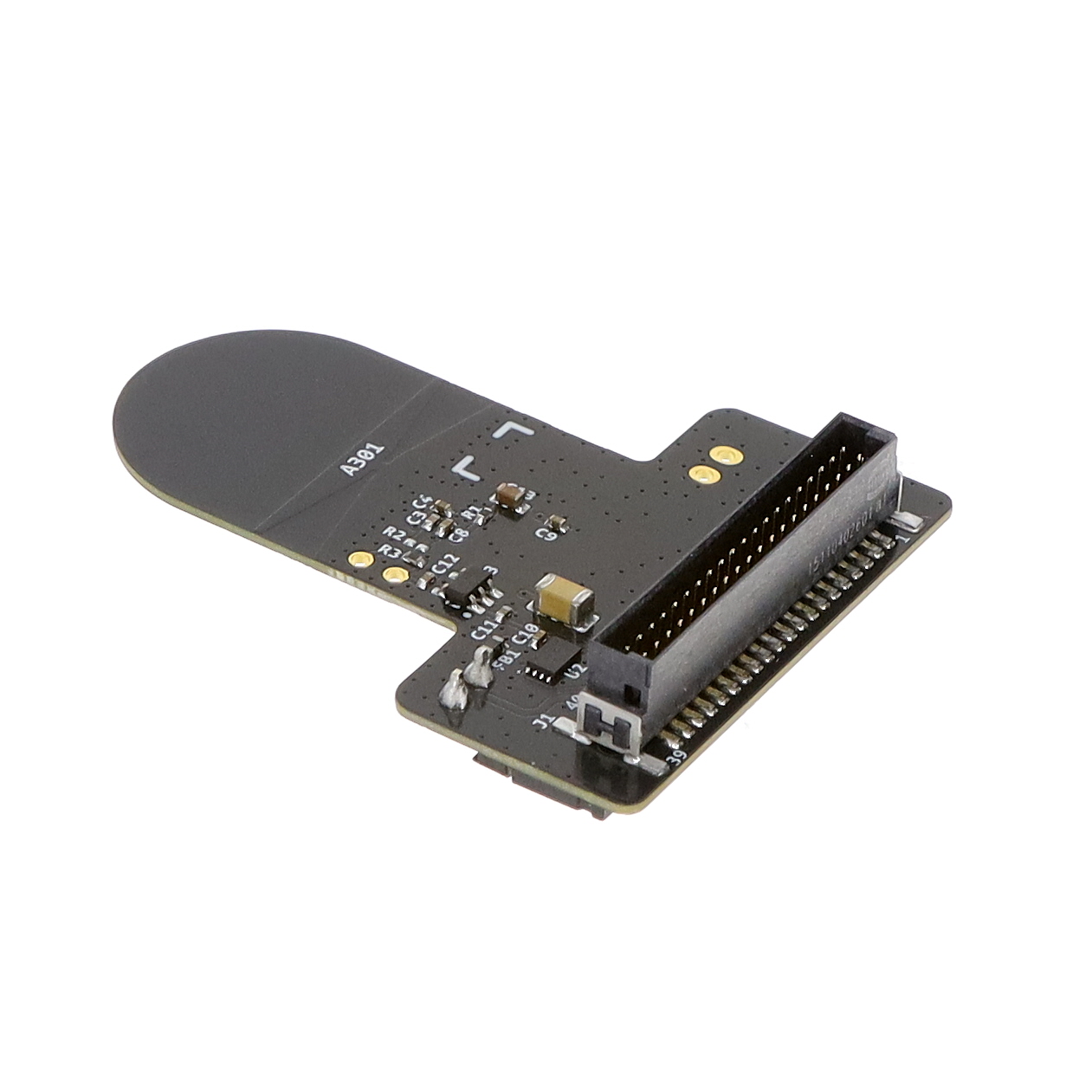

SPARK Microsystems International Inc. SR1120AA-MD318-MP1
Image shown is a representation only
Manufacturer
Manufacturer No
SR1120AA-MD318-MP1
Package
Module
Packaging
Strip
Description
RF TXRX MOD INT TRACE
Detailed Description
Bluetooth, Cellular, WiFi Ultra Wideband (UWB) Impulse Radio Transceiver Module 6.25GHz ~ 9.5GHz Integrated, Trace Connector Mount
DataSheet
Mfr
SPARK Microsystems International Inc.
Series
SR1120
Protocol
Ultra Wideband (UWB) Impulse Radio
Data Rate
20.48Mbps
Frequency
6.25GHz ~ 9.5GHz
Packaging
Strip
Modulation
OOK
Part Status
Active
Sensitivity
-81dBm
Antenna Type
Integrated, Trace
Mounting Type
Connector Mount
Package / Case
Module
Power - Output
3dBm
Voltage - Supply
1.8V ~ 3.3V
Serial Interfaces
SPI
RF Family/Standard
Bluetooth, Cellular, WiFi
Utilized IC / Part
SR1120
Base Product Number
SR1120
Current - Receiving
9.7mA ~ 16mA
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
3.3mA ~ 5.7mA
| Attribute | Value |
|---|---|
| Mfr | SPARK Microsystems International Inc. |
| Series | SR1120 |
| Protocol | Ultra Wideband (UWB) Impulse Radio |
| Data Rate | 20.48Mbps |
| Frequency | 6.25GHz ~ 9.5GHz |
| Packaging | Strip |
| Modulation | OOK |
| Part Status | Active |
| Sensitivity | -81dBm |
| Antenna Type | Integrated, Trace |
| Mounting Type | Connector Mount |
| Package / Case | Module |
| Power - Output | 3dBm |
| Voltage - Supply | 1.8V ~ 3.3V |
| Serial Interfaces | SPI |
| RF Family/Standard | Bluetooth, Cellular, WiFi |
| Utilized IC / Part | SR1120 |
| Base Product Number | SR1120 |
| Current - Receiving | 9.7mA ~ 16mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 3.3mA ~ 5.7mA |
