Step1: Product
Souriau-Sunbank by Eaton SMS6R4S6

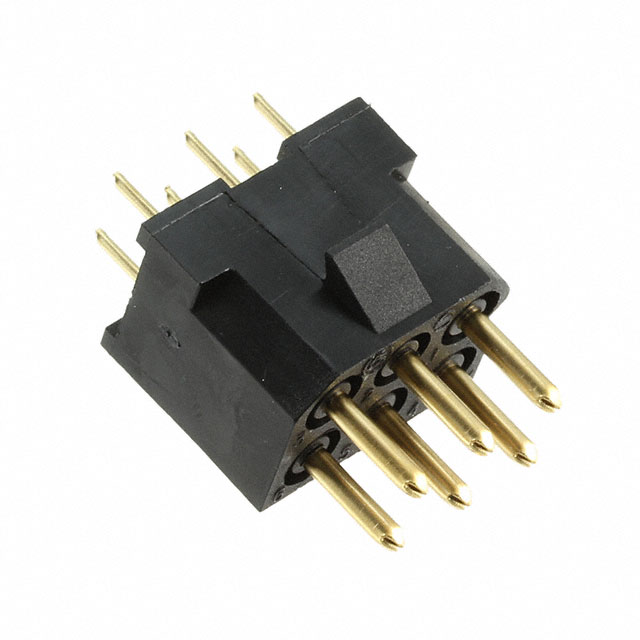

Image shown is a representation only
Manufacturer
Manufacturer No
SMS6R4S6
Packaging
Bulk
Description
CONN HEADER VERT 6POS 5.08MM
Detailed Description
Connector Header Through Hole 6 position 0.200" (5.08mm)
Mfr
Souriau-Sunbank by Eaton
Style
Board to Cable/Wire
Series
SMS
Packaging
Bulk
Shrouding
Unshrouded
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.200" (5.08mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.520" (13.20mm)
Ingress Protection
IP40
Base Product Number
SMS6R
Insulation Material
Polyester, Glass Filled
Number of Positions
6
Row Spacing - Mating
0.200" (5.08mm)
Contact Finish - Post
Tin
Contact Length - Post
0.173" (4.40mm)
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 125°C
Overall Contact Length
0.972" (24.70mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.280" (7.11mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-2
Contact Finish Thickness - Mating
16.0µin (0.41µm)
| Attribute | Value |
|---|---|
| Mfr | Souriau-Sunbank by Eaton |
| Style | Board to Cable/Wire |
| Series | SMS |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.200" (5.08mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.520" (13.20mm) |
| Ingress Protection | IP40 |
| Base Product Number | SMS6R |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.173" (4.40mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 125°C |
| Overall Contact Length | 0.972" (24.70mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.280" (7.11mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
