Step1: Product

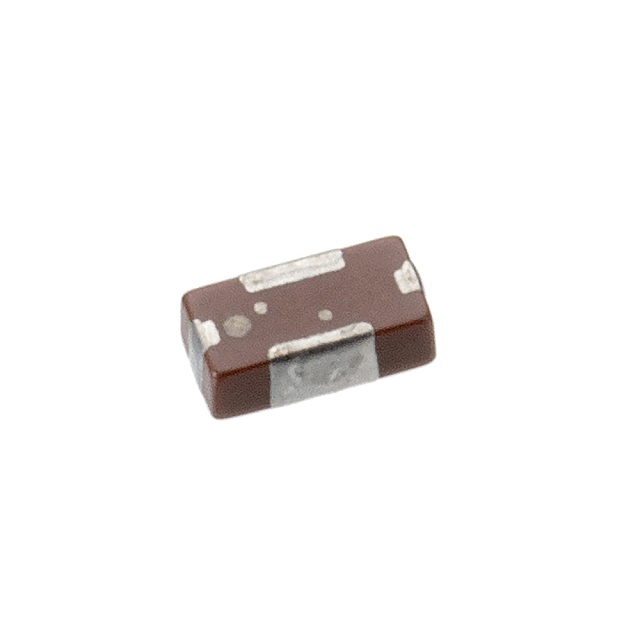

SOSHIN ELECTRIC CO., LTD. HMD9116T
Image shown is a representation only
Manufacturer
Manufacturer No
HMD9116T
Package
0603 (1608 Metric), 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LTCC BAND PASS FILTER, 4900MHZ -
Detailed Description
5.425GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.05GHz Bandwidth 1dB 0603 (1608 Metric), 4 PC Pad
DataSheet
Bandwidth
1.05GHz
Frequency
5.425GHz Center
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Band Pass
Part Status
Active
Height (Max)
0.024" (0.60mm)
Manufacturer
SOSHIN ELECTRIC CO., LTD.
Mounting Type
Surface Mount
Insertion Loss
1dB
Package / Case
0603 (1608 Metric), 4 PC Pad
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
| Attribute | Value |
|---|---|
| Bandwidth | 1.05GHz |
| Frequency | 5.425GHz Center |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Band Pass |
| Part Status | Active |
| Height (Max) | 0.024" (0.60mm) |
| Manufacturer | SOSHIN ELECTRIC CO., LTD. |
| Mounting Type | Surface Mount |
| Insertion Loss | 1dB |
| Package / Case | 0603 (1608 Metric), 4 PC Pad |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
