Step1: Product

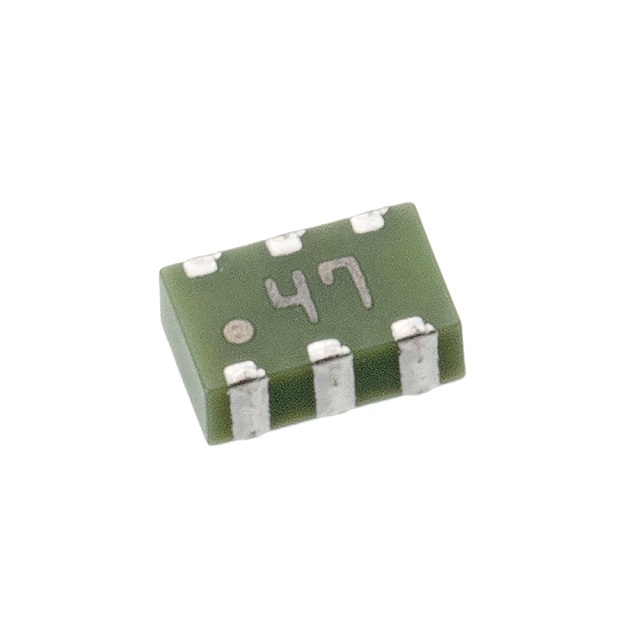

SOSHIN ELECTRIC CO., LTD. HMD8704F
Image shown is a representation only
Manufacturer
Manufacturer No
HMD8704F
Package
0805 (2012 Metric), 6 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF POWER DIVIDER 2300MHZ - 5000M
Detailed Description
RF Power Divider 2.3 GHz ~ 5 GHz Isolation (Min) 15dB, 20.2dB Return Loss, 2° Imbalance (Max) 0805 (2012 Metric), 6 PC Pad
DataSheet
Frequency
2.3 GHz ~ 5 GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
SOSHIN ELECTRIC CO., LTD.
Insertion Loss
0.53dB
Package / Case
0805 (2012 Metric), 6 PC Pad
Specifications
Isolation (Min) 15dB, 20.2dB Return Loss, 2° Imbalance (Max)
Size / Dimension
0.079" L x 0.049" W x 0.031" H (2.00mm x 1.25mm x 0.80mm)
| Attribute | Value |
|---|---|
| Frequency | 2.3 GHz ~ 5 GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | SOSHIN ELECTRIC CO., LTD. |
| Insertion Loss | 0.53dB |
| Package / Case | 0805 (2012 Metric), 6 PC Pad |
| Specifications | Isolation (Min) 15dB, 20.2dB Return Loss, 2° Imbalance (Max) |
| Size / Dimension | 0.079" L x 0.049" W x 0.031" H (2.00mm x 1.25mm x 0.80mm) |
