Step1: Product

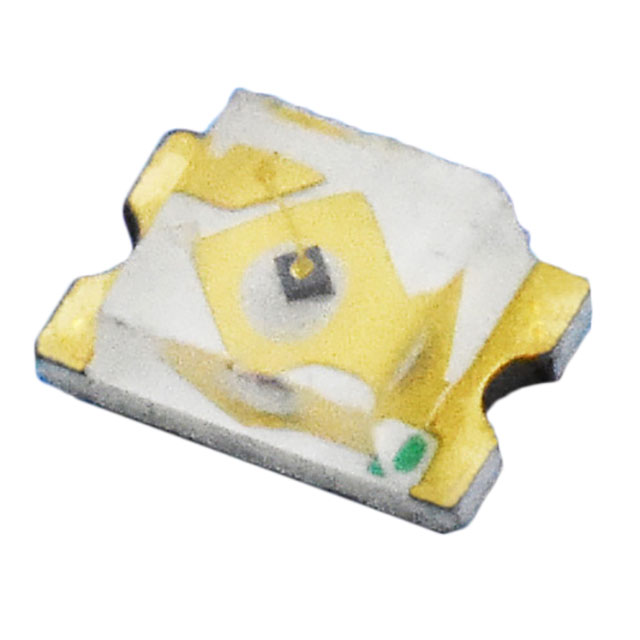

Solidlite AP0805A-ZIR-020MA
Image shown is a representation only
Manufacturer
Manufacturer No
AP0805A-ZIR-020MA
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR)
Description
0805 20MA 940NM IR LED MOLDING T
Detailed Description
Infrared (IR) Emitter 940nm 1.3V 50mA 0.57mW/sr @ 20mA 120° 0805 (2012 Metric)
DataSheet
Type
Infrared (IR)
Packaging
Tape & Reel (TR)
Wavelength
940nm
Orientation
Top View
Part Status
Active
Manufacturer
Solidlite
Mounting Type
Surface Mount
Viewing Angle
120°
Package / Case
0805 (2012 Metric)
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Forward (Vf) (Typ)
1.3V
Current - DC Forward (If) (Max)
50mA
Radiant Intensity (Ie) Min @ If
0.57mW/sr @ 20mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Packaging | Tape & Reel (TR) |
| Wavelength | 940nm |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | Solidlite |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Package / Case | 0805 (2012 Metric) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Current - DC Forward (If) (Max) | 50mA |
| Radiant Intensity (Ie) Min @ If | 0.57mW/sr @ 20mA |
