Step1: Product

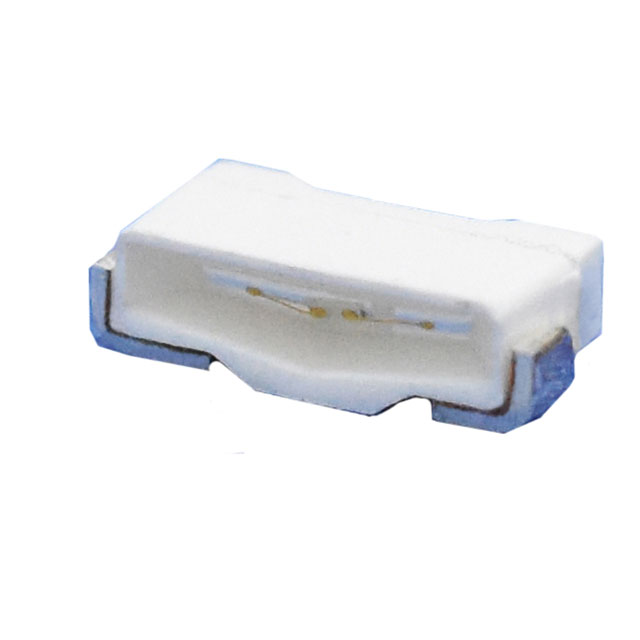

Solidlite AL008SA-RN-20MA
Image shown is a representation only
Manufacturer
Manufacturer No
AL008SA-RN-20MA
Package
4-SMD
Packaging
Tape & Reel (TR)
Description
LED RED CLEAR 4SMD R/A
Detailed Description
Red 623nm LED Indication - Discrete 2.4V 4-SMD
DataSheet
Mfr
Solidlite
Color
Red
Series
RN
Lens Size
2.50mm x 0.80mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.80mm
Configuration
Independent
Mounting Type
Surface Mount, Right Angle
Viewing Angle
110°
Current - Test
20mA
Package / Case
4-SMD
Size / Dimension
2.50mm L x 1.20mm W
Lens Transparency
Clear
Millicandela Rating
225mcd
Wavelength - Dominant
623nm
Supplier Device Package
4-SMD
Voltage - Forward (Vf) (Typ)
2.4V
| Attribute | Value |
|---|---|
| Mfr | Solidlite |
| Color | Red |
| Series | RN |
| Lens Size | 2.50mm x 0.80mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.80mm |
| Configuration | Independent |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 110° |
| Current - Test | 20mA |
| Package / Case | 4-SMD |
| Size / Dimension | 2.50mm L x 1.20mm W |
| Lens Transparency | Clear |
| Millicandela Rating | 225mcd |
| Wavelength - Dominant | 623nm |
| Supplier Device Package | 4-SMD |
| Voltage - Forward (Vf) (Typ) | 2.4V |
