SMC Diode Solutions SX011V

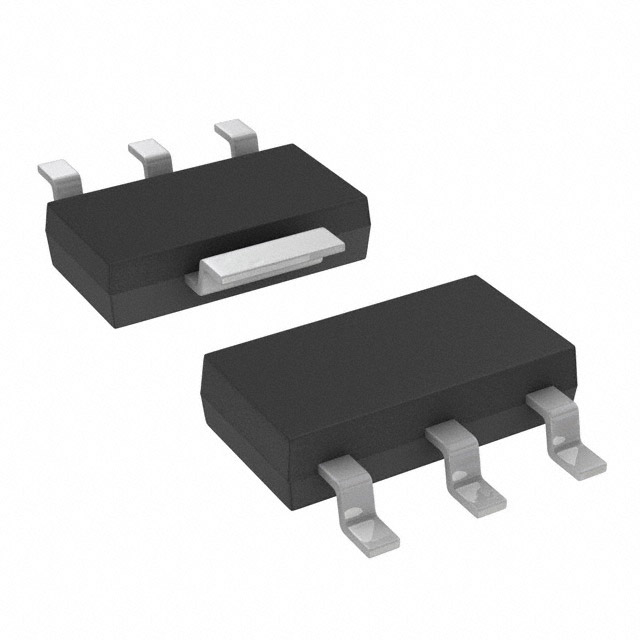

Image shown is a representation only
Manufacturer
Manufacturer No
SX011V
Package
TO-261-4, TO-261AA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SCR 800V 1A SOT-223
Detailed Description
SCR 800 V 1 A Sensitive Gate Surface Mount SOT-223
DataSheet
Series
SX011
SCR Type
Sensitive Gate
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
SMC Diode Solutions
Mounting Type
Surface Mount
Package / Case
TO-261-4, TO-261AA
Voltage - Off State
800 V
Operating Temperature
-40°C ~ 110°C (TJ)
Supplier Device Package
SOT-223
Current - Hold (Ih) (Max)
4 mA
Current - Off State (Max)
5 µA
Voltage - On State (Vtm) (Max)
1.7 V
Current - Gate Trigger (Igt) (Max)
200 µA
Voltage - Gate Trigger (Vgt) (Max)
800 mV
Current - On State (It (RMS)) (Max)
1 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
12A @ 50Hz
| Attribute | Value |
|---|---|
| Series | SX011 |
| SCR Type | Sensitive Gate |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | SMC Diode Solutions |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Voltage - Off State | 800 V |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Supplier Device Package | SOT-223 |
| Current - Hold (Ih) (Max) | 4 mA |
| Current - Off State (Max) | 5 µA |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - On State (It (RMS)) (Max) | 1 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 12A @ 50Hz |
