Step1: Product
SMC Diode Solutions P6KE9.1A

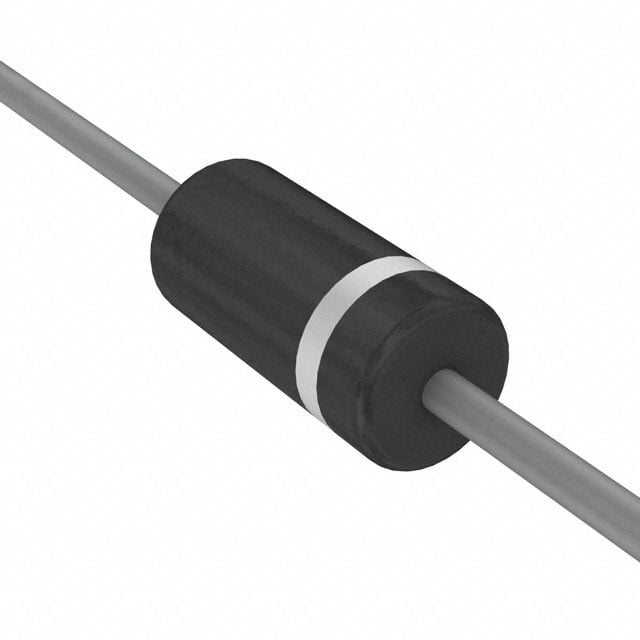

Image shown is a representation only
Manufacturer
Manufacturer No
P6KE9.1A
Quantity
4000
Availability
In Stock
Package
DO-204AC, DO-15, Axial
Packaging
Tape & Box (TB)
Description
TVS DIODE 7.78VWM 13.4VC DO15
Detailed Description
13.4V Clamp 45A Ipp Tvs Diode Through Hole DO-15
DataSheet
Mfr
SMC Diode Solutions
Type
Zener
Packaging
Tape & Box (TB)
Part Status
Active
Applications
General Purpose
Mounting Type
Through Hole
Package / Case
DO-204AC, DO-15, Axial
Power - Peak Pulse
600W
Base Product Number
P6KE9.1
Operating Temperature
-65°C ~ 175°C (TJ)
Power Line Protection
No
Supplier Device Package
DO-15
Unidirectional Channels
1
Voltage - Breakdown (Min)
8.65V
Voltage - Clamping (Max) @ Ipp
13.4V
Voltage - Reverse Standoff (Typ)
7.78V
Current - Peak Pulse (10/1000µs)
45A
| Attribute | Value |
|---|---|
| Mfr | SMC Diode Solutions |
| Type | Zener |
| Packaging | Tape & Box (TB) |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Power - Peak Pulse | 600W |
| Base Product Number | P6KE9.1 |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | DO-15 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 8.65V |
| Voltage - Clamping (Max) @ Ipp | 13.4V |
| Voltage - Reverse Standoff (Typ) | 7.78V |
| Current - Peak Pulse (10/1000µs) | 45A |
