Step1: Product
SiTime SIT9001AI-33-XXXX-000.FP000X

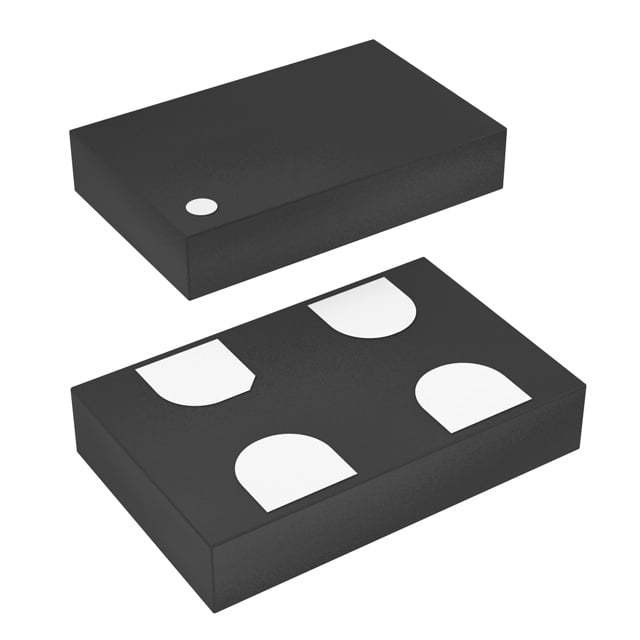

Image shown is a representation only
Manufacturer
Manufacturer No
SIT9001AI-33-XXXX-000.FP000X
Package
4-SMD, No Lead
Packaging
Bulk
Description
MEMS OSC PROG BLANK
Detailed Description
XO (Standard) LVCMOS 1 MHz ~ 200 MHz Programmable Oscillator 1.8V, 2.5V ~ 3.3V Enable/Disable, Standby 4-SMD, No Lead
DataSheet
Type
XO (Standard)
Output
LVCMOS
Series
SiT9001
Function
Enable/Disable, Standby
Packaging
Bulk
Part Status
Obsolete
Manufacturer
SiTime
Mounting Type
Surface Mount
Base Resonator
MEMS
Package / Case
4-SMD, No Lead
Size / Dimension
0.197" L x 0.126" W (5.00mm x 3.20mm)
Voltage - Supply
1.8V, 2.5V ~ 3.3V
Programmable Type
Blank (User Must Program)
Base Product Number
SIT9001
Height - Seated (Max)
0.031" (0.80mm)
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
34mA
Supplier Device Package
4-SMD (5x3.2)
Available Frequency Range
1 MHz ~ 200 MHz
Frequency Stability (Total)
±50ppm
| Attribute | Value |
|---|---|
| Type | XO (Standard) |
| Output | LVCMOS |
| Series | SiT9001 |
| Function | Enable/Disable, Standby |
| Packaging | Bulk |
| Part Status | Obsolete |
| Manufacturer | SiTime |
| Mounting Type | Surface Mount |
| Base Resonator | MEMS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Voltage - Supply | 1.8V, 2.5V ~ 3.3V |
| Programmable Type | Blank (User Must Program) |
| Base Product Number | SIT9001 |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 34mA |
| Supplier Device Package | 4-SMD (5x3.2) |
| Available Frequency Range | 1 MHz ~ 200 MHz |
| Frequency Stability (Total) | ±50ppm |
