Step1: Product
Silergy SY20816CQLC

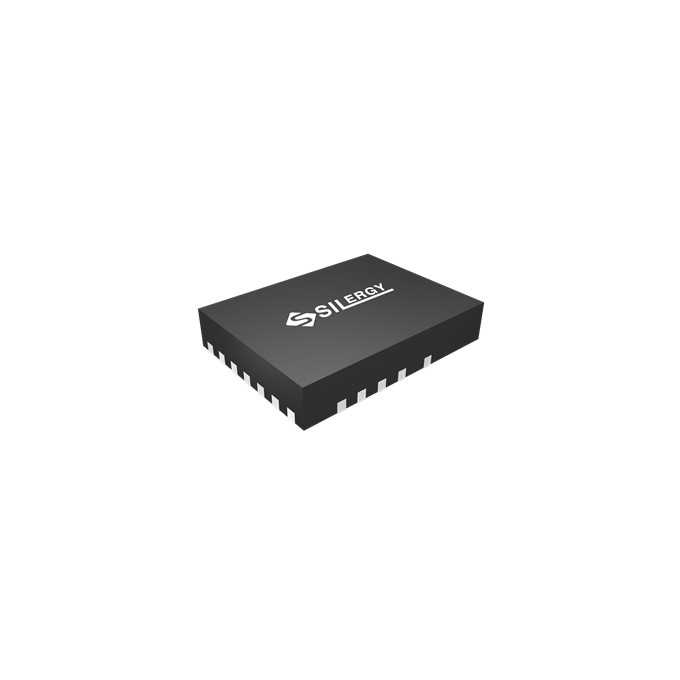

Image shown is a representation only
Manufacturer
Manufacturer No
SY20816CQLC
Package
16-QFN (3x4)
Packaging
Strip
Description
2:1 Power MUX for USB
Detailed Description
Power Switch/Driver 2:1 N-Channel 5A 16-QFN (3x4) part alias of SY6862CQLC
Datasheet
Mfr
Silergy
Series
*
Features
Enable Input High, Slew Rate Controlled, Status Flag
Interface
I2C, Logic
Packaging
Strip
Input Type
Non-Inverting
Output Type
N-Channel
Switch Type
USB Switch
Rds On (Typ)
41mOhm
Mounting Type
Surface Mount
Package / Case
16-QFN (3x4)
Voltage - Load
3.4V ~ 23V
Fault Protection
Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO
Number of Outputs
1
Output Configuration
High Side
Ratio - Input:Output
2:1
Operating Temperature
-40°C ~ 125°C (TJ)
Current - Output (Max)
5A
Supplier Device Package
16-QFN (3x4)
| Attribute | Value |
|---|---|
| Mfr | Silergy |
| Series | * |
| Features | Enable Input High, Slew Rate Controlled, Status Flag |
| Interface | I2C, Logic |
| Packaging | Strip |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Switch Type | USB Switch |
| Rds On (Typ) | 41mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 16-QFN (3x4) |
| Voltage - Load | 3.4V ~ 23V |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Ratio - Input:Output | 2:1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Output (Max) | 5A |
| Supplier Device Package | 16-QFN (3x4) |
