Step1: Product
Silergy SY205203TXD

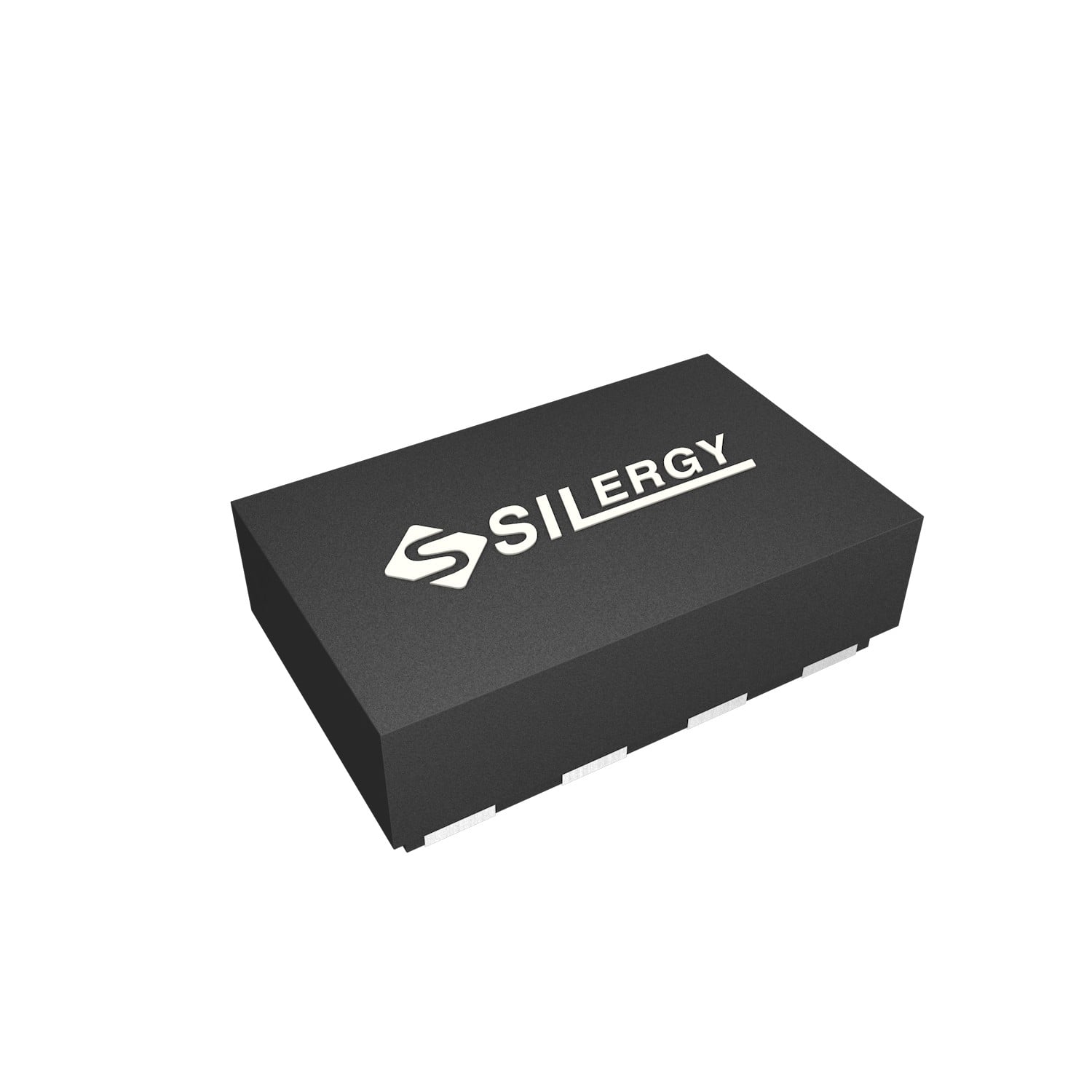

Image shown is a representation only
Manufacturer
Manufacturer No
SY205203TXD
Package
8-UDFN Exposed Pad
Packaging
Strip
Description
Common Mode Filter with ESD
Detailed Description
RC (Pi) EMI Filter 2nd Order Low Pass Channel R = 100Ohm, C = 7pF 8-UDFN Exposed Pad part alias of SYE1104TXD
Datasheet
Type
Low Pass
Height
0.020" (0.50mm)
Series
*
Values
R = 100Ohm, C = 7pF
Packaging
Strip
Technology
RC (Pi)
Applications
General Purpose
Filter Order
2nd
Manufacturer
Silergy
Mounting Type
Surface Mount
ESD Protection
Yes
Package / Case
8-UDFN Exposed Pad
Voltage - Rated
5V
Size / Dimension
0.063" L x 0.039" W (1.60mm x 1.00mm)
Attenuation Value
-20dB @ 800MHz
Operating Temperature
-40°C ~ 125°C
Center / Cutoff Frequency
250MHz (Cutoff)
Resistance - Channel (Ohms)
100
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.020" (0.50mm) |
| Series | * |
| Values | R = 100Ohm, C = 7pF |
| Packaging | Strip |
| Technology | RC (Pi) |
| Applications | General Purpose |
| Filter Order | 2nd |
| Manufacturer | Silergy |
| Mounting Type | Surface Mount |
| ESD Protection | Yes |
| Package / Case | 8-UDFN Exposed Pad |
| Voltage - Rated | 5V |
| Size / Dimension | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| Attenuation Value | -20dB @ 800MHz |
| Operating Temperature | -40°C ~ 125°C |
| Center / Cutoff Frequency | 250MHz (Cutoff) |
| Resistance - Channel (Ohms) | 100 |
