Step1: Product
Signal Transformer SPDL485025-350-2P-T

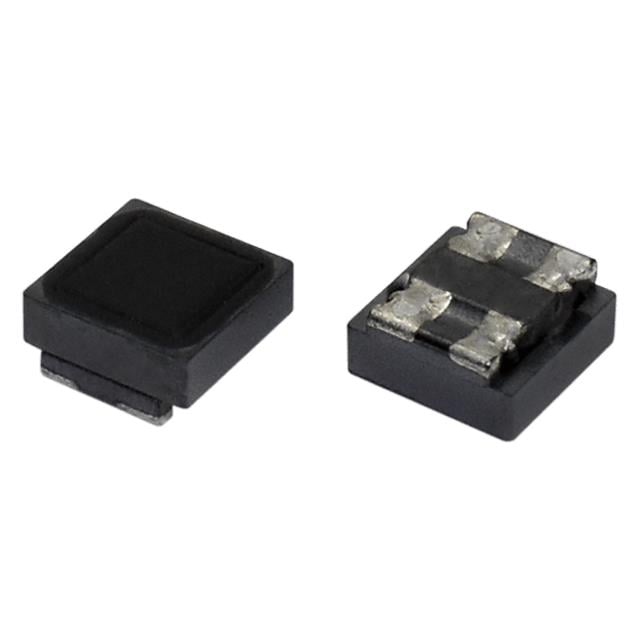

Image shown is a representation only
Manufacturer
Manufacturer No
SPDL485025-350-2P-T
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CMC 4A 2LN 350 OHM SMD
Detailed Description
2 Line Common Mode Choke Surface Mount 350 Ohms @ 100 MHz 4A DCR 28mOhm (Typ)
Datasheet
Series
SPDL485025
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Power Line
Height (Max)
0.098" (2.50mm)
Manufacturer
Signal Transformer
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.197" L x 0.189" W (5.00mm x 4.80mm)
Voltage Rating - DC
50V
Current Rating (Max)
4A
Impedance @ Frequency
350 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 125°C
DC Resistance (DCR) (Max)
28mOhm (Typ)
| Attribute | Value |
|---|---|
| Series | SPDL485025 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Power Line |
| Height (Max) | 0.098" (2.50mm) |
| Manufacturer | Signal Transformer |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.197" L x 0.189" W (5.00mm x 4.80mm) |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 4A |
| Impedance @ Frequency | 350 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) (Max) | 28mOhm (Typ) |
