Step1: Product

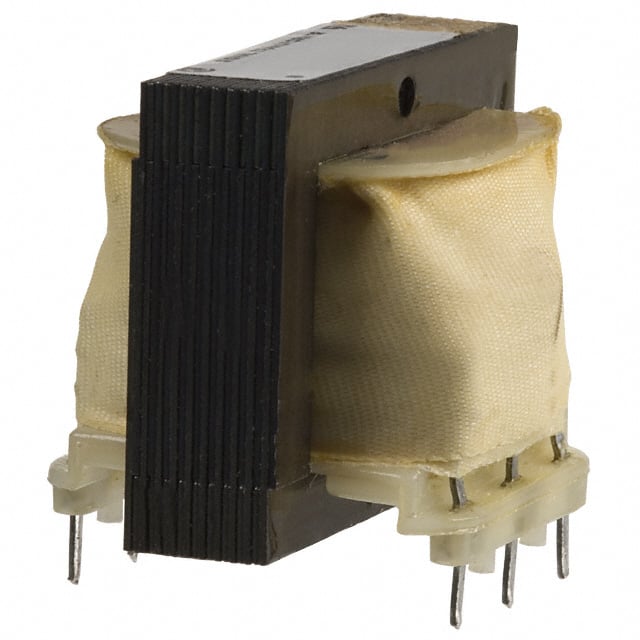

Signal Transformer PC-12-100
Image shown is a representation only
Manufacturer
Manufacturer No
PC-12-100
Packaging
Box
Description
PWR XFMR LAMINATED 1.2VA TH
Detailed Description
Laminated Core 1.2VA Power Transformer 115V Primary Parallel 6.3V, Series 12.6V Secondary Parallel 200mA, Series 100mA Through Hole
Datasheet
Type
Laminated Core
Series
PC
Weight
0.188 lb (85.28 g)
Packaging
Box
Center Tap
No
Power - Max
1.2VA
Manufacturer
Signal Transformer
Mounting Type
Through Hole
Size / Dimension
34.90mm L x 28.60mm W
Termination Style
PC Pin
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
1500Vrms
Secondary Winding(s)
Dual
Height - Seated (Max)
30.15mm
Current - Output (Max)
Parallel 200mA, Series 100mA
Voltage - Secondary (Full Load)
Parallel 6.3V, Series 12.6V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | PC |
| Weight | 0.188 lb (85.28 g) |
| Packaging | Box |
| Center Tap | No |
| Power - Max | 1.2VA |
| Manufacturer | Signal Transformer |
| Mounting Type | Through Hole |
| Size / Dimension | 34.90mm L x 28.60mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 1500Vrms |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 30.15mm |
| Current - Output (Max) | Parallel 200mA, Series 100mA |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V |
