Signal Transformer DRC-V-2R2M

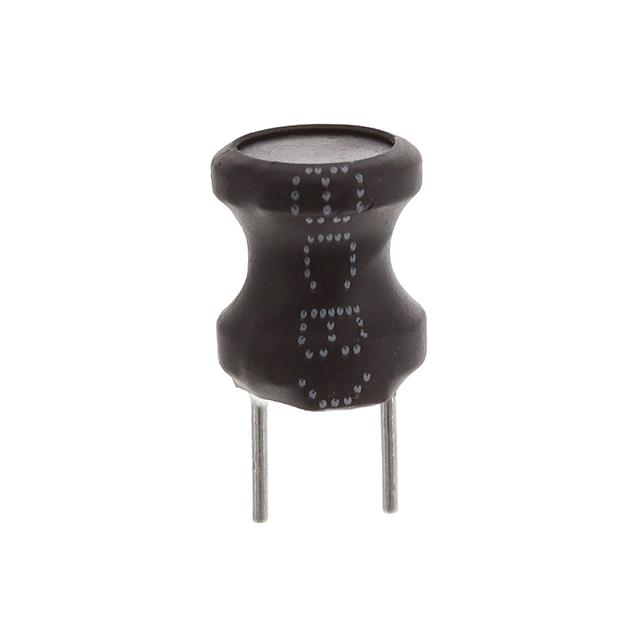

Signal Transformer DRC-V-2R2M electronic component

Image shown is a representation only

Manufacturer
Signal Transformer
Manufacturer No
DRC-V-2R2M
Package
Radial, Vertical Cylinder
Packaging
Tray
Description
FIXED IND 2.2UH 5.6A 21 MOHM TH
Detailed Description
2.2 µH Unshielded Drum Core, Wirewound Inductor 5.6 A 21mOhm Max Radial, Vertical Cylinder
Datasheet
ISO 13485 certification
ISO 14001 certification
Five-Star Service certification
UKAS management certification
IAF recognition arrangement certification
Mfr
Signal Transformer
Type
Drum Core, Wirewound
Series
DRC-V
Q @ Freq
20 @ 7.96MHz
Packaging
Tray
Shielding
Unshielded
Tolerance
±20%
Inductance
2.2 µH
Mounting Type
Through Hole
Package / Case
Radial, Vertical Cylinder
Material - Core
Ferrite
Size / Dimension
0.343" Dia (8.70mm)
Base Product Number
DRC-V
DC Resistance (DCR)
21mOhm Max
Current Rating (Amps)
5.6 A
Height - Seated (Max)
0.492" (12.50mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
Radial
Frequency - Self Resonant
100MHz
Current - Saturation (Isat)
6.5A
Inductance Frequency - Test
7.96 MHz
AttributeValue
MfrSignal Transformer
TypeDrum Core, Wirewound
SeriesDRC-V
Q @ Freq20 @ 7.96MHz
PackagingTray
ShieldingUnshielded
Tolerance±20%
Inductance2.2 µH
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Material - CoreFerrite
Size / Dimension0.343" Dia (8.70mm)
Base Product NumberDRC-V
DC Resistance (DCR)21mOhm Max
Current Rating (Amps)5.6 A
Height - Seated (Max)0.492" (12.50mm)
Operating Temperature-40°C ~ 125°C
Supplier Device PackageRadial
Frequency - Self Resonant100MHz
Current - Saturation (Isat)6.5A
Inductance Frequency - Test7.96 MHz
