Step1: Product
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C4N5CTM01

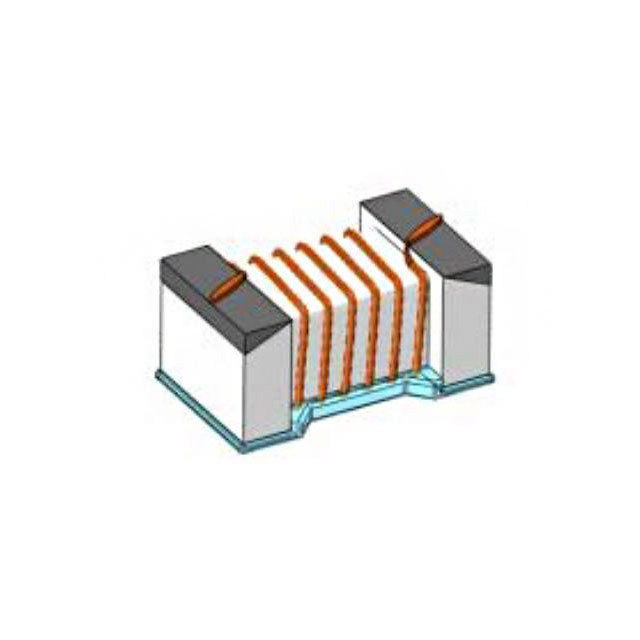

Image shown is a representation only
Manufacturer
Manufacturer No
MWSD1005C4N5CTM01
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 4.5NH 750MA 70 MOHM
Detailed Description
4.5 nH Unshielded Drum Core, Wirewound Inductor 750 mA 70mOhm Max 0402 (1005 Metric)
DataSheet
Mfr
Shenzhen Sunlord Electronics Co., Ltd.
Type
Drum Core, Wirewound
Series
MWSD-C-M
Q @ Freq
25 @ 250MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±0.2nH
Inductance
4.5 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.043" L x 0.024" W (1.10mm x 0.60mm)
Base Product Number
MWSD1005C4
DC Resistance (DCR)
70mOhm Max
Current Rating (Amps)
750 mA
Height - Seated (Max)
0.026" (0.65mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0402
Frequency - Self Resonant
6GHz
Inductance Frequency - Test
100 MHz
| Attribute | Value |
|---|---|
| Mfr | Shenzhen Sunlord Electronics Co., Ltd. |
| Type | Drum Core, Wirewound |
| Series | MWSD-C-M |
| Q @ Freq | 25 @ 250MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±0.2nH |
| Inductance | 4.5 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Base Product Number | MWSD1005C4 |
| DC Resistance (DCR) | 70mOhm Max |
| Current Rating (Amps) | 750 mA |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0402 |
| Frequency - Self Resonant | 6GHz |
| Inductance Frequency - Test | 100 MHz |
