Step1: Product

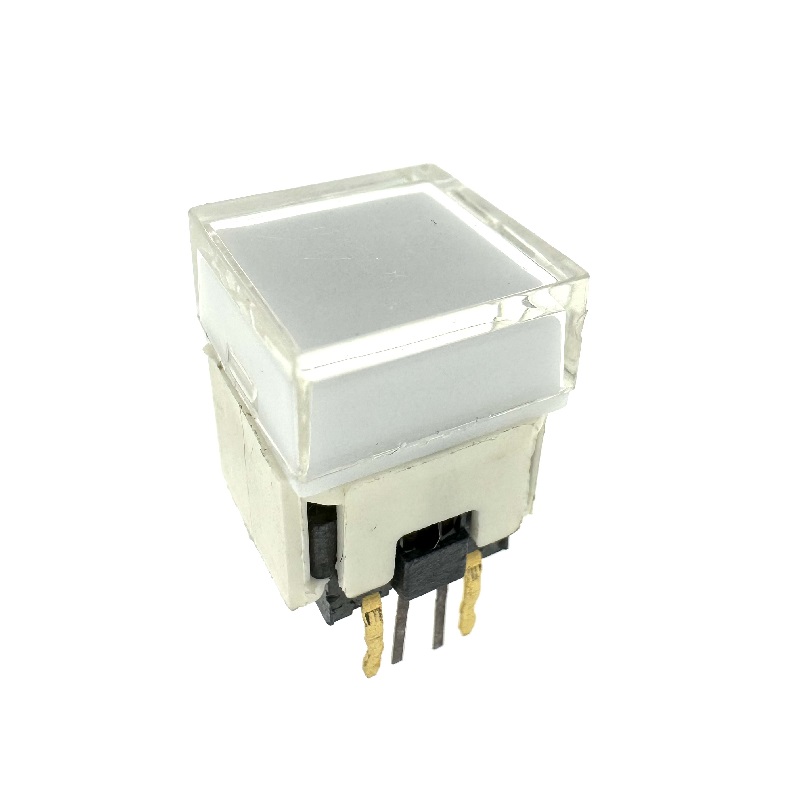

Shenzhen Lakeview Electronics Co., Ltd TL13-AA1G1NN-S1BTW
Image shown is a representation only
Manufacturer
Manufacturer No
TL13-AA1G1NN-S1BTW
Packaging
Tray
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
Mfr
Shenzhen Lakeview Electronics Co., Ltd
Series
TL13
Circuit
SPST-NO
Outline
12.00mm x 12.00mm
Packaging
Tray
Illumination
Illuminated
Actuator Type
Square Button
Mounting Type
Through Hole
Switch Travel
0.85mm
Mechanical Life
1,000,000 Cycles
Operating Force
280gf
Switch Function
Off-Mom
Actuator Material
Polyoxymethylene (Acetal) (POM)
Termination Style
PC Pin
Ingress Protection
IP67 - Dust Tight, Waterproof
Actuator Orientation
Top Actuated
Operating Temperature
-20°C ~ 70°C
Contact Rating @ Voltage
0.05A @ 12VDC
Illumination Type, Color
LED, Green
| Attribute | Value |
|---|---|
| Mfr | Shenzhen Lakeview Electronics Co., Ltd |
| Series | TL13 |
| Circuit | SPST-NO |
| Outline | 12.00mm x 12.00mm |
| Packaging | Tray |
| Illumination | Illuminated |
| Actuator Type | Square Button |
| Mounting Type | Through Hole |
| Switch Travel | 0.85mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 280gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Termination Style | PC Pin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -20°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Type, Color | LED, Green |
