SHARP/Socle Technology PC3H710NIP1H

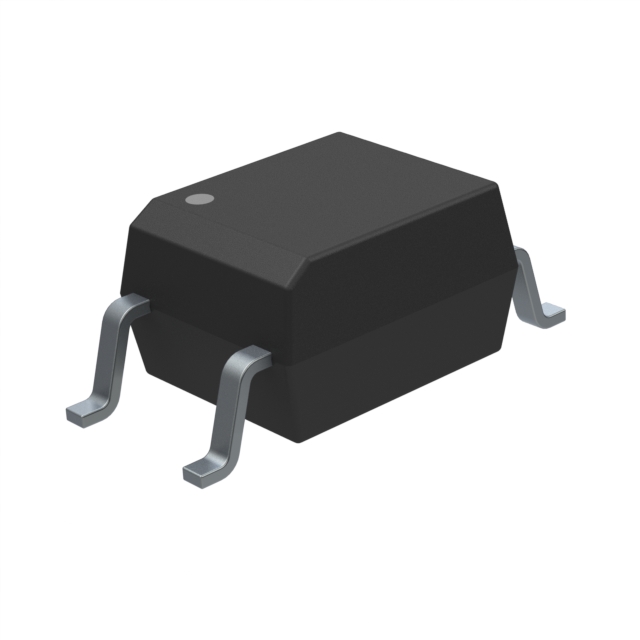

Image shown is a representation only
Manufacturer
Manufacturer No
PC3H710NIP1H
Quantity
97
Availability
In Stock
Package
4-SOIC (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
OPTOISOLTR 2.5KV 1CH TRANS 4-SMD
Detailed Description
Optoisolator Transistor Output 2500Vrms 1 Channel 4-SMD
Datasheet
Series
PC3H71
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
DC
Output Type
Transistor
Manufacturer
SHARP/Socle Technology
Mounting Type
Surface Mount
Package / Case
4-SOIC (0.173", 4.40mm Width)
Number of Channels
1
Base Product Number
PC3H710
Voltage - Isolation
2500Vrms
Vce Saturation (Max)
200mV
Operating Temperature
-30°C ~ 100°C
Rise / Fall Time (Typ)
4µs, 3µs
Voltage - Output (Max)
80V
Supplier Device Package
4-SMD
Current - Output / Channel
500µA
Current Transfer Ratio (Max)
700% @ 500µA
Current Transfer Ratio (Min)
100% @ 500µA
Voltage - Forward (Vf) (Typ)
1.2V
Current - DC Forward (If) (Max)
10 mA
| Attribute | Value |
|---|---|
| Series | PC3H71 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | DC |
| Output Type | Transistor |
| Manufacturer | SHARP/Socle Technology |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Number of Channels | 1 |
| Base Product Number | PC3H710 |
| Voltage - Isolation | 2500Vrms |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Voltage - Output (Max) | 80V |
| Supplier Device Package | 4-SMD |
| Current - Output / Channel | 500µA |
| Current Transfer Ratio (Max) | 700% @ 500µA |
| Current Transfer Ratio (Min) | 100% @ 500µA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 10 mA |
