Step1: Product
Sharp Microelectronics PC3SD12NTZAF

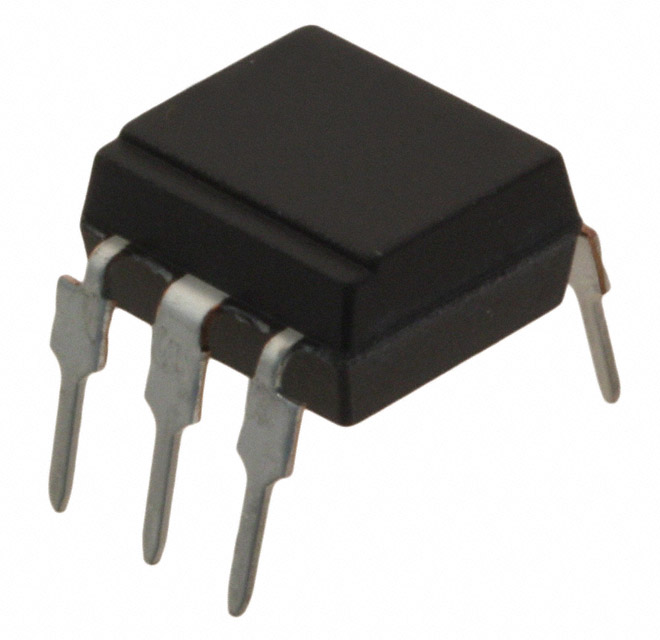

Image shown is a representation only
Manufacturer
Manufacturer No
PC3SD12NTZAF
Quantity
32
Availability
In Stock
Package
6-DIP (0.300", 7.62mm), 5 Leads
Packaging
Tube
Description
OPTOISOLATOR 5KV TRIAC 1CH 6-DIP
Detailed Description
Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
DataSheet
Packaging
Tube
Output Type
Triac
Part Status
Obsolete
Manufacturer
Sharp Microelectronics
Turn On Time
50µs (Max)
Mounting Type
Through Hole
Package / Case
6-DIP (0.300", 7.62mm), 5 Leads
Approval Agency
CSA, UR
Number of Channels
1
Static dV/dt (Min)
1kV/µs
Base Product Number
PC3SD12
Current - Hold (Ih)
3.5mA
Voltage - Isolation
5000Vrms
Voltage - Off State
600 V
Operating Temperature
-30°C ~ 100°C
Zero Crossing Circuit
No
Supplier Device Package
6-DIP
Voltage - Forward (Vf) (Typ)
1.2V
Current - DC Forward (If) (Max)
50 mA
Current - LED Trigger (Ift) (Max)
10mA
Current - On State (It (RMS)) (Max)
100 mA
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Output Type | Triac |
| Part Status | Obsolete |
| Manufacturer | Sharp Microelectronics |
| Turn On Time | 50µs (Max) |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Approval Agency | CSA, UR |
| Number of Channels | 1 |
| Static dV/dt (Min) | 1kV/µs |
| Base Product Number | PC3SD12 |
| Current - Hold (Ih) | 3.5mA |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Operating Temperature | -30°C ~ 100°C |
| Zero Crossing Circuit | No |
| Supplier Device Package | 6-DIP |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
