Step1: Product

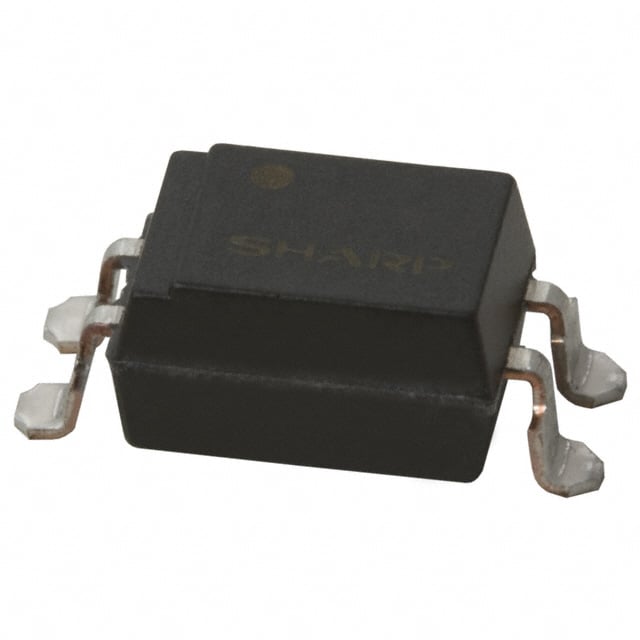

Sharp Microelectronics PC123P
Image shown is a representation only
Manufacturer
Manufacturer No
PC123P
Package
4-SMD, Gull Wing
Packaging
Tape & Reel (TR)
Description
OPTOISOLATOR 5KV 1CH TRANS 4-SMD
Detailed Description
Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
DataSheet
Series
PC123
Packaging
Tape & Reel (TR)
Input Type
DC
Output Type
Transistor
Part Status
Obsolete
Manufacturer
Sharp Microelectronics
Mounting Type
Surface Mount
Package / Case
4-SMD, Gull Wing
Number of Channels
1
Base Product Number
PC123
Voltage - Isolation
5000Vrms
Vce Saturation (Max)
200mV
Operating Temperature
-30°C ~ 100°C
Rise / Fall Time (Typ)
4µs, 3µs
Voltage - Output (Max)
70V
Supplier Device Package
4-SMD
Current - Output / Channel
50mA
Voltage - Forward (Vf) (Typ)
1.2V
Current - DC Forward (If) (Max)
50 mA
| Attribute | Value |
|---|---|
| Series | PC123 |
| Packaging | Tape & Reel (TR) |
| Input Type | DC |
| Output Type | Transistor |
| Part Status | Obsolete |
| Manufacturer | Sharp Microelectronics |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Number of Channels | 1 |
| Base Product Number | PC123 |
| Voltage - Isolation | 5000Vrms |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Voltage - Output (Max) | 70V |
| Supplier Device Package | 4-SMD |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
