Step1: Product

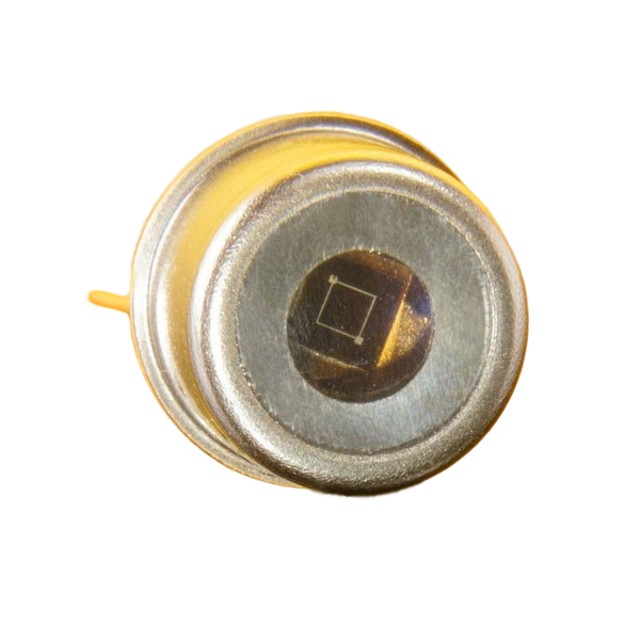

Sglux GmbH SG01XL-A5
Image shown is a representation only
Manufacturer
Manufacturer No
SG01XL-A5
Package
TO-5
Packaging
Bulk
Description
UVA photodiode, SiC, 7.6mm2
Detailed Description
Photodiode 331nm 190ps TO-5
DataSheet
Packaging
Bulk
Diode Type
PIN
Wavelength
331nm
Active Area
7.60mm²
Part Status
Active
Manufacturer
Sglux GmbH
Mounting Type
Through Hole
Response Time
190ps
Package / Case
TO-5
Spectral Range
309nm ~ 358nm
Color - Enhanced
Ultraviolet (UV)
Responsivity @ nm
0.045 A/W @ 331nm
Current - Dark (Typ)
0.025pA
Operating Temperature
-55°C ~ 170°C
Voltage - DC Reverse (Vr) (Max)
20 V
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Diode Type | PIN |
| Wavelength | 331nm |
| Active Area | 7.60mm² |
| Part Status | Active |
| Manufacturer | Sglux GmbH |
| Mounting Type | Through Hole |
| Response Time | 190ps |
| Package / Case | TO-5 |
| Spectral Range | 309nm ~ 358nm |
| Color - Enhanced | Ultraviolet (UV) |
| Responsivity @ nm | 0.045 A/W @ 331nm |
| Current - Dark (Typ) | 0.025pA |
| Operating Temperature | -55°C ~ 170°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
