Step1: Product

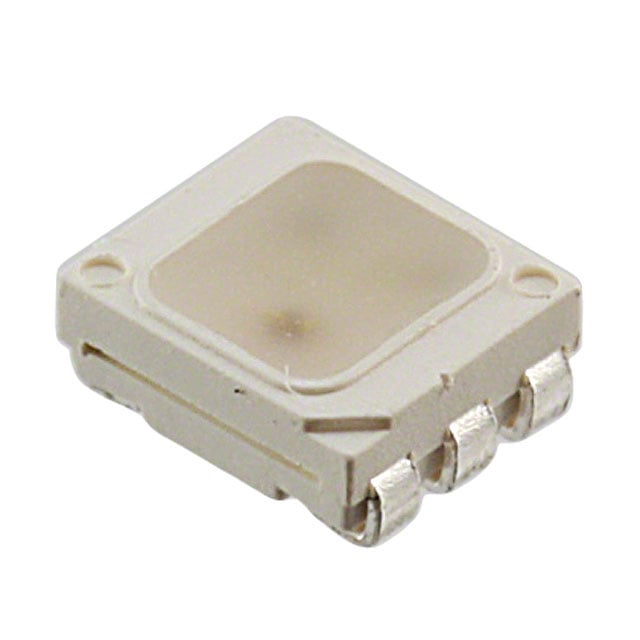

Seoul Semiconductor Inc. SFT825Z-S
Image shown is a representation only
Manufacturer
Manufacturer No
SFT825Z-S
Package
6-PLCC
Packaging
Tape & Reel (TR)
Description
LED RGB DIFFUSED 6PLCC SMD
Detailed Description
Red, Green, Blue (RGB) 623nm Red, 527nm Green, 460nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.2V Blue 6-PLCC
DataSheet
Mfr
Seoul Semiconductor Inc.
Color
Red, Green, Blue (RGB)
Packaging
Tape & Reel (TR)
Lens Color
White
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
1.40mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-PLCC
Size / Dimension
3.20mm L x 2.80mm W
Lens Transparency
Diffused
Wavelength - Peak
632nm Red, 518nm Green, 453nm Blue
Base Product Number
SFT825
Millicandela Rating
700mcd Red, 1200mcd Green, 400mcd Blue
Wavelength - Dominant
623nm Red, 527nm Green, 460nm Blue
Supplier Device Package
6-PLCC
Voltage - Forward (Vf) (Typ)
2.1V Red, 3.2V Green, 3.2V Blue
| Attribute | Value |
|---|---|
| Mfr | Seoul Semiconductor Inc. |
| Color | Red, Green, Blue (RGB) |
| Packaging | Tape & Reel (TR) |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 1.40mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 632nm Red, 518nm Green, 453nm Blue |
| Base Product Number | SFT825 |
| Millicandela Rating | 700mcd Red, 1200mcd Green, 400mcd Blue |
| Wavelength - Dominant | 623nm Red, 527nm Green, 460nm Blue |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
