Step1: Product

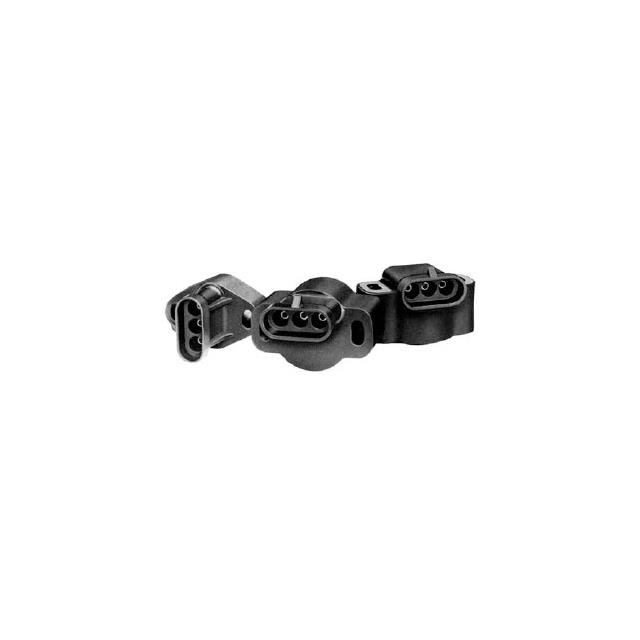

Sensata-BEI Sensors 9800-697-1
Image shown is a representation only
Manufacturer
Manufacturer No
9800-697-1
Package
Box with Connector
Packaging
Bulk
Description
THROTTLE POSITION SENSOR
Detailed Description
Resistive Sensor Angle, Rotary Position External Magnet, Not Included Connector
DataSheet
Output
Resistive
Series
9800
Packaging
Bulk
Resistance
5 kOhms
Technology
Resistive
Part Status
Active
Manufacturer
Sensata-BEI Sensors
Actuator Type
External Magnet, Not Included
For Measuring
Angle, Rotary Position
Mounting Type
Chassis Mount
Output Signal
Clockwise Increase
Package / Case
Box with Connector
Termination Style
Connector
Resistance Tolerance
±20%
Operating Temperature
-40°C ~ 135°C
Rotation Angle - Electrical, Mechanical
0° ~ 85°
| Attribute | Value |
|---|---|
| Output | Resistive |
| Series | 9800 |
| Packaging | Bulk |
| Resistance | 5 kOhms |
| Technology | Resistive |
| Part Status | Active |
| Manufacturer | Sensata-BEI Sensors |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Angle, Rotary Position |
| Mounting Type | Chassis Mount |
| Output Signal | Clockwise Increase |
| Package / Case | Box with Connector |
| Termination Style | Connector |
| Resistance Tolerance | ±20% |
| Operating Temperature | -40°C ~ 135°C |
| Rotation Angle - Electrical, Mechanical | 0° ~ 85° |
