Step1: Product
Semtech Corporation SLVU2.8Q.TCT

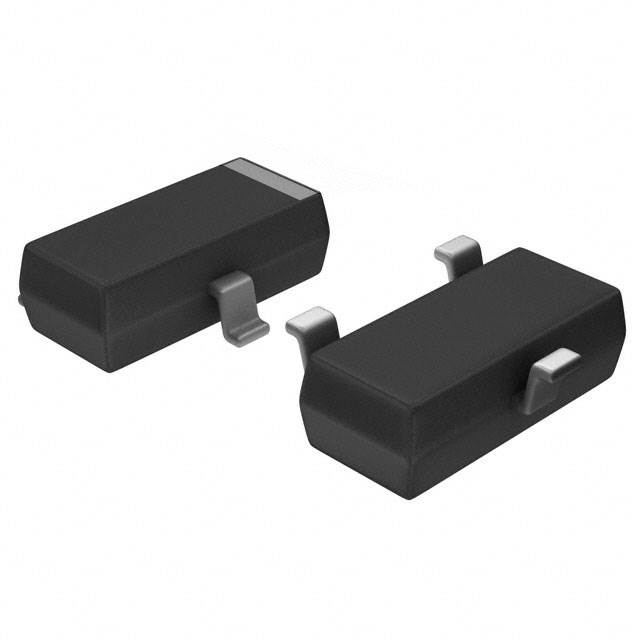

Image shown is a representation only
Manufacturer
Manufacturer No
SLVU2.8Q.TCT
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 2.8VWM 12.5VC SOT23-3
Detailed Description
12.5V Clamp 24A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
DataSheet
Mfr
Semtech Corporation
Type
Zener
Grade
Automotive
Series
SLV
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
TO-236-3, SC-59, SOT-23-3
Power - Peak Pulse
400W
Base Product Number
SLVU2.8
Operating Temperature
-40°C ~ 85°C (TJ)
Power Line Protection
No
Capacitance @ Frequency
40pF @ 1MHz
Supplier Device Package
SOT-23-3
Unidirectional Channels
1
Voltage - Breakdown (Min)
3.2V
Voltage - Clamping (Max) @ Ipp
12.5V
Voltage - Reverse Standoff (Typ)
2.8V (Max)
Current - Peak Pulse (10/1000µs)
24A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Semtech Corporation |
| Type | Zener |
| Grade | Automotive |
| Series | SLV |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Power - Peak Pulse | 400W |
| Base Product Number | SLVU2.8 |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Power Line Protection | No |
| Capacitance @ Frequency | 40pF @ 1MHz |
| Supplier Device Package | SOT-23-3 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 3.2V |
| Voltage - Clamping (Max) @ Ipp | 12.5V |
| Voltage - Reverse Standoff (Typ) | 2.8V (Max) |
| Current - Peak Pulse (10/1000µs) | 24A (8/20µs) |
