Step1: Product
Semtech Corporation EZ1580CM.TRT

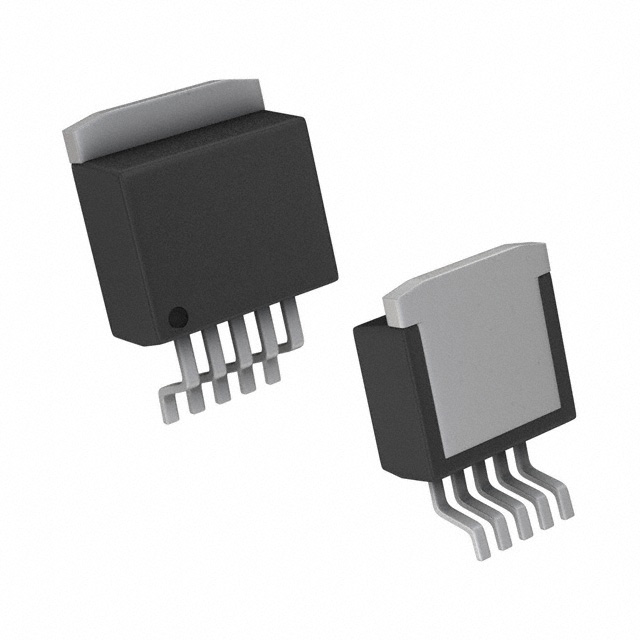

Image shown is a representation only
Manufacturer
Manufacturer No
EZ1580CM.TRT
Package
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Packaging
Tape & Reel (TR)
Description
IC REG LINEAR POS ADJ 7A TO263-5
Detailed Description
Linear Voltage Regulator IC Positive Adjustable 1 Output 7A TO-263-5
Datasheet
Mfr
Semtech Corporation
PSRR
80dB (120Hz)
Packaging
Tape & Reel (TR)
Output Type
Adjustable
Mounting Type
Surface Mount
Package / Case
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Control Features
Enable
Current - Output
7A
Base Product Number
EZ1580
Protection Features
Over Current, Over Temperature
Number of Regulators
1
Output Configuration
Positive
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
7V
Voltage Dropout (Max)
0.8V @ 7A
Voltage - Output (Max)
5.7V
Supplier Device Package
TO-263-5
Current - Quiescent (Iq)
10 mA
Voltage - Output (Min/Fixed)
1.3V
| Attribute | Value |
|---|---|
| Mfr | Semtech Corporation |
| PSRR | 80dB (120Hz) |
| Packaging | Tape & Reel (TR) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Control Features | Enable |
| Current - Output | 7A |
| Base Product Number | EZ1580 |
| Protection Features | Over Current, Over Temperature |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Operating Temperature | 0°C ~ 125°C |
| Voltage - Input (Max) | 7V |
| Voltage Dropout (Max) | 0.8V @ 7A |
| Voltage - Output (Max) | 5.7V |
| Supplier Device Package | TO-263-5 |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Output (Min/Fixed) | 1.3V |
