Step1: Product
SemiQ GP3D050A065B

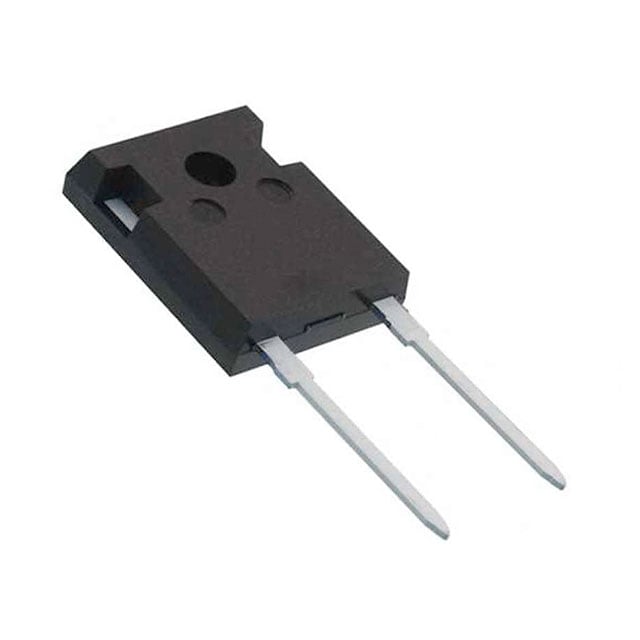

Image shown is a representation only
Manufacturer
Manufacturer No
GP3D050A065B
Package
TO-247-2
Packaging
Tube
Description
DIODE SIL CARB 650V 135A TO247-2
Detailed Description
Diode 650 V 135A Through Hole TO-247-2
DataSheet
Mfr
SemiQ
Speed
Zero Recovery Time > 500mA (Io)
Series
Amp+™
Packaging
Tube
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-2
Base Product Number
GP3D050
Capacitance @ Vr, F
1946pF @ 1V, 1MHz
Supplier Device Package
TO-247-2
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
125 µA @ 650 V
Voltage - DC Reverse (Vr) (Max)
650 V
Current - Average Rectified (Io)
135A
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.6 V @ 50 A
| Attribute | Value |
|---|---|
| Mfr | SemiQ |
| Speed | Zero Recovery Time > 500mA (Io) |
| Series | Amp+™ |
| Packaging | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Base Product Number | GP3D050 |
| Capacitance @ Vr, F | 1946pF @ 1V, 1MHz |
| Supplier Device Package | TO-247-2 |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 125 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 135A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 50 A |
