SemiQ GP2T040A120U

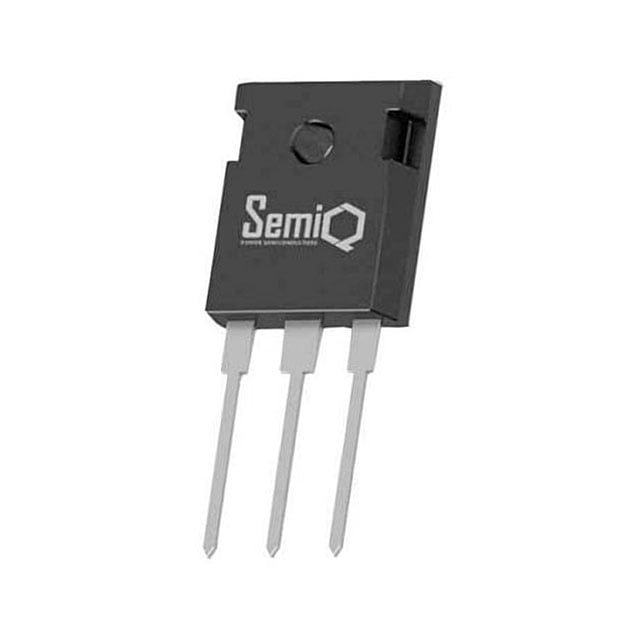

Image shown is a representation only
Manufacturer
Manufacturer No
GP2T040A120U
Package
TO-247-3
Packaging
Tube
Description
SIC MOSFET 1200V 40M TO-247-3L
Detailed Description
N-Channel 1200 V 63A (Tc) 322W (Tc) Through Hole TO-247-3
DataSheet
Mfr
SemiQ
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
+25V, -10V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-3
Vgs(th) (Max) @ Id
4V @ 10mA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
52mOhm @ 40A, 20V
Power Dissipation (Max)
322W (Tc)
Supplier Device Package
TO-247-3
Gate Charge (Qg) (Max) @ Vgs
118 nC @ 20 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
3192 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)
20V
Current - Continuous Drain (Id) @ 25°C
63A (Tc)
| Attribute | Value |
|---|---|
| Mfr | SemiQ |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | +25V, -10V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Vgs(th) (Max) @ Id | 4V @ 10mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 40A, 20V |
| Power Dissipation (Max) | 322W (Tc) |
| Supplier Device Package | TO-247-3 |
| Gate Charge (Qg) (Max) @ Vgs | 118 nC @ 20 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3192 pF @ 1000 V |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 63A (Tc) |
