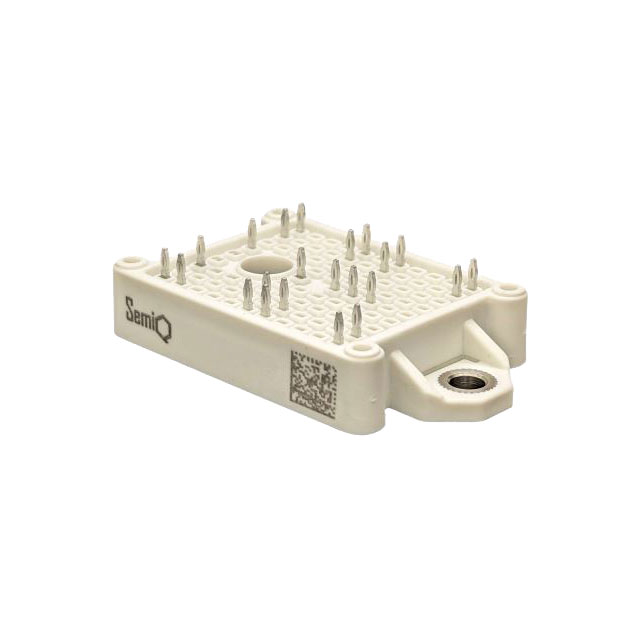

SemiQ GCMX020A120B2H1P
Image shown is a representation only
Manufacturer
Manufacturer No
GCMX020A120B2H1P
Package
Module
Packaging
Tray
Description
MOSFET 4N-CH 1200V 102A
Detailed Description
Mosfet Array 1200V (1.2kV) 102A (Tc) 333W (Tc) Chassis Mount
Packaging
Tray
Technology
Silicon Carbide (SiC)
Part Status
Active
Power - Max
333W (Tc)
Manufacturer
SemiQ
Configuration
4 N-Channel (Full Bridge)
Mounting Type
Chassis Mount
Package / Case
Module
Vgs(th) (Max) @ Id
4V @ 20mA
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
28mOhm @ 50A, 20V
Gate Charge (Qg) (Max) @ Vgs
222nC @ 20V
Drain to Source Voltage (Vdss)
1200V (1.2kV)
Input Capacitance (Ciss) (Max) @ Vds
5600pF @ 800V
Current - Continuous Drain (Id) @ 25°C
102A (Tc)
| Attribute | Value |
|---|---|
| Packaging | Tray |
| Technology | Silicon Carbide (SiC) |
| Part Status | Active |
| Power - Max | 333W (Tc) |
| Manufacturer | SemiQ |
| Configuration | 4 N-Channel (Full Bridge) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 4V @ 20mA |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 50A, 20V |
| Gate Charge (Qg) (Max) @ Vgs | 222nC @ 20V |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 5600pF @ 800V |
| Current - Continuous Drain (Id) @ 25°C | 102A (Tc) |
