Step1: Product
Semiconductor Circuits, Inc. CPC7760T

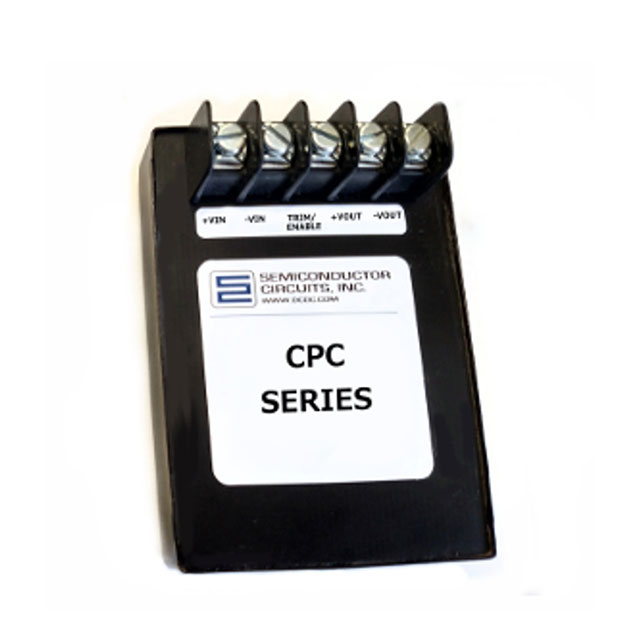

Image shown is a representation only
Manufacturer
Manufacturer No
CPC7760T
Packaging
Bulk
Description
DC-DC CONVERTER 22V 154W
Detailed Description
Isolated Module DC DC Converter 1 Output 22V 7A 72V Input
DataSheet
Type
Isolated Module
Series
CPC
Packaging
Bulk
Efficiency
94%
Part Status
Active
Applications
ITE (Commercial)
Manufacturer
Semiconductor Circuits, Inc.
Mounting Type
Chassis Mount
Power (Watts)
154W
Approval Agency
CSA, TUV, UL
Standard Number
62368-1
Size / Dimension
3.50" L x 2.50" W x 1.50" H (88.9mm x 63.5mm x 38.1mm)
Number of Outputs
1
Voltage - Output 1
22V
Voltage - Isolation
2.25 kV
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
72V
Voltage - Input (Min)
36V
Current - Output (Max)
7A
| Attribute | Value |
|---|---|
| Type | Isolated Module |
| Series | CPC |
| Packaging | Bulk |
| Efficiency | 94% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Manufacturer | Semiconductor Circuits, Inc. |
| Mounting Type | Chassis Mount |
| Power (Watts) | 154W |
| Approval Agency | CSA, TUV, UL |
| Standard Number | 62368-1 |
| Size / Dimension | 3.50" L x 2.50" W x 1.50" H (88.9mm x 63.5mm x 38.1mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 22V |
| Voltage - Isolation | 2.25 kV |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 72V |
| Voltage - Input (Min) | 36V |
| Current - Output (Max) | 7A |
