Step1: Product

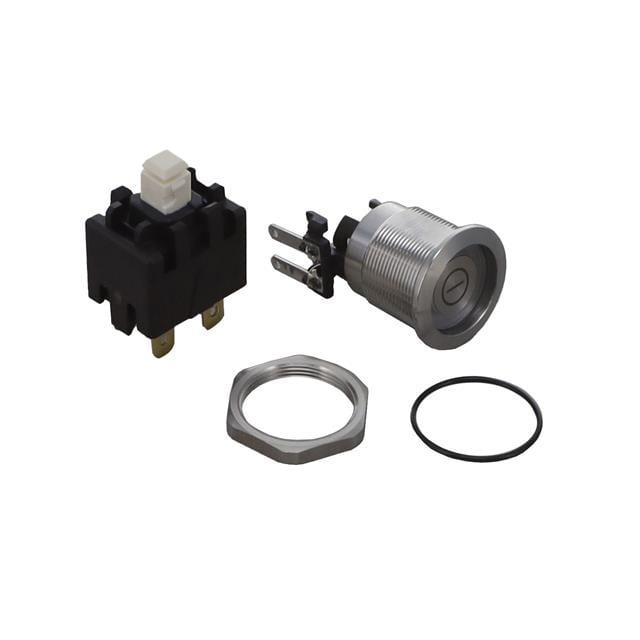

SCHURTER Inc. 3-120-537
Image shown is a representation only
Manufacturer
Manufacturer No
3-120-537
Packaging
Bulk
Description
PUSH SWITCH BLUE LATCH
Detailed Description
Pushbutton Switch DPST Anti-Vandal, Illuminated Panel Mount, Front
Datasheet
Mfr
SCHURTER Inc.
Type
Anti-Vandal, Illuminated
Series
MSM LA
Circuit
DPST
Packaging
Bulk
Actuator Type
Round, Button
Mounting Type
Panel Mount, Front
Electrical Life
20,000 Cycles
Mechanical Life
100,000 Cycles
Switch Function
Off-On
Actuator Marking
Power Symbol
Termination Style
Quick Connect - 0.187" (4.7mm)
Ingress Protection
IP64 - Dust Tight, Water Resistant
Voltage Rating - AC
250 V
Voltage Rating - DC
30 V
Color - Actuator/Cap
Silver
Current Rating (Amps)
16A (AC/DC)
Operating Temperature
-20°C ~ 85°C
Panel Cutout Dimensions
Circular - 19.10mm Dia
Illumination Type, Color
LED, Blue
Illumination Voltage (Nominal)
24 VDC
| Attribute | Value |
|---|---|
| Mfr | SCHURTER Inc. |
| Type | Anti-Vandal, Illuminated |
| Series | MSM LA |
| Circuit | DPST |
| Packaging | Bulk |
| Actuator Type | Round, Button |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 20,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Switch Function | Off-On |
| Actuator Marking | Power Symbol |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP64 - Dust Tight, Water Resistant |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 16A (AC/DC) |
| Operating Temperature | -20°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 19.10mm Dia |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 24 VDC |
