Step1: Product

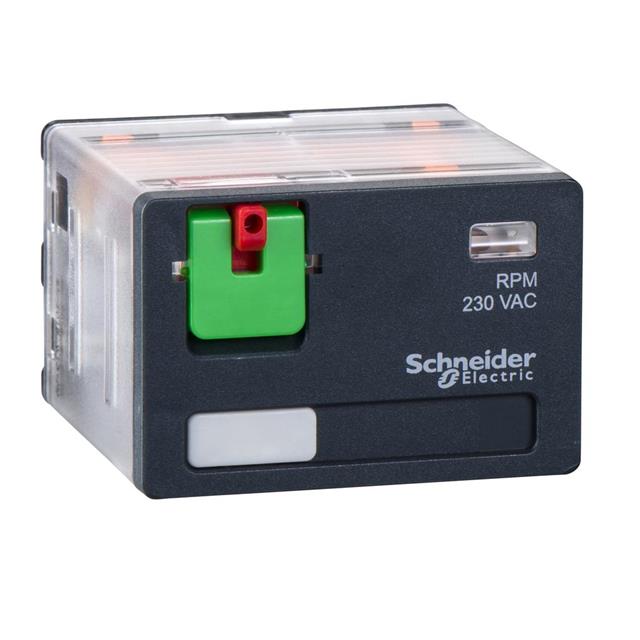

Schneider Electric RPM41P7
Image shown is a representation only
Manufacturer
Manufacturer No
RPM41P7
Packaging
Box
Description
HARMONY, POWER PLUG-IN RELAY, 15
Detailed Description
General Purpose Relay 4PDT (4 Form C) 230VAC Coil Socketable
DataSheet
Mfr
Schneider Electric
Series
Harmony
Features
Test Button
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Part Status
Active
Coil Current
31.3 mA
Coil Voltage
230VAC
Contact Form
4PDT (4 Form C)
Operate Time
20 ms
Release Time
20 ms
Mounting Type
Socketable
Approval Agency
CSA, EAC, UL
Coil Resistance
7.35 kOhms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
250VAC, 28VDC - Max
Termination Style
Plug In
Base Product Number
RPM41
Load - Max Switching
3750VA, 420W
Must Operate Voltage
184 VAC
Must Release Voltage
34.5 VAC
Operating Temperature
-40°C ~ 55°C
Contact Rating (Current)
15 A
| Attribute | Value |
|---|---|
| Mfr | Schneider Electric |
| Series | Harmony |
| Features | Test Button |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 31.3 mA |
| Coil Voltage | 230VAC |
| Contact Form | 4PDT (4 Form C) |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Mounting Type | Socketable |
| Approval Agency | CSA, EAC, UL |
| Coil Resistance | 7.35 kOhms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 250VAC, 28VDC - Max |
| Termination Style | Plug In |
| Base Product Number | RPM41 |
| Load - Max Switching | 3750VA, 420W |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 34.5 VAC |
| Operating Temperature | -40°C ~ 55°C |
| Contact Rating (Current) | 15 A |
