Schmartboard, Inc. 920-0171-01

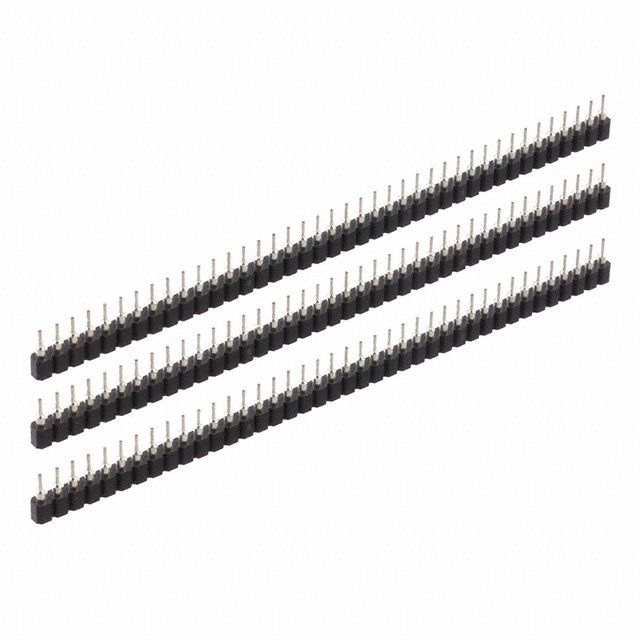

Image shown is a representation only
Manufacturer
Manufacturer No
920-0171-01
Packaging
Bulk
Description
CONN HDR 40POS 0.1 GLD PCB 1=3PC
Detailed Description
40 Position Header, Breakaway Connector 0.100" (2.54mm) Through Hole Gold
DataSheet
Mfr
Schmartboard, Inc.
Style
Board to Board
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.118" (3.00mm)
Base Product Number
920-0171
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
40
Contact Finish - Post
Gold
Contact Length - Post
0.177" (4.50mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Schmartboard, Inc. |
| Style | Board to Board |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.118" (3.00mm) |
| Base Product Number | 920-0171 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 40 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.177" (4.50mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
