Step1: Product

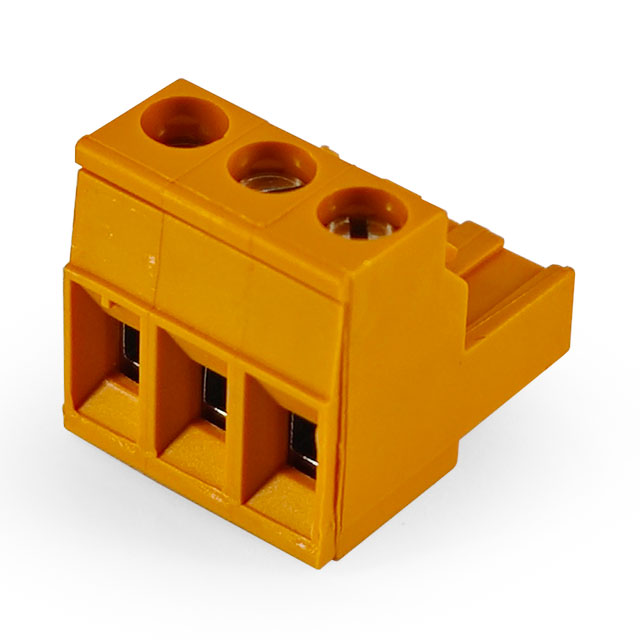

Sauro Electronic Connectors CIF03001-0A
Image shown is a representation only
Manufacturer
Manufacturer No
CIF03001-0A
Packaging
Bulk
Description
TERM BLOCK PLUG 3POS 5MM
Detailed Description
3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Datasheet
Type
Plug, Female Sockets
Color
Orange
Pitch
0.197" (5.00mm)
Series
CIF
Features
Side Stacking
Packaging
Bulk
Screw Size
M3
Current - UL
15 A
Manufacturer
Sauro Electronic Connectors
Voltage - UL
300 V
Mounting Type
Free Hanging (In-Line)
Torque - Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry
180°
Contact Material
Copper Tin
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.610" (15.49mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
6-7.5mm
Number of Positions
3
Positions Per Level
3
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 105°C
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm²
0.05-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Orange |
| Pitch | 0.197" (5.00mm) |
| Series | CIF |
| Features | Side Stacking |
| Packaging | Bulk |
| Screw Size | M3 |
| Current - UL | 15 A |
| Manufacturer | Sauro Electronic Connectors |
| Voltage - UL | 300 V |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Copper Tin |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.610" (15.49mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 6-7.5mm |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
