Step1: Product
Sanyo LV8734V-TLM-H

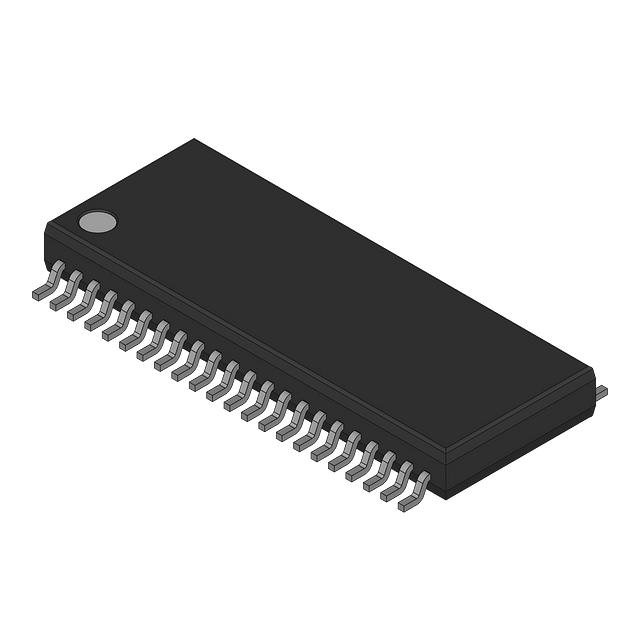

Image shown is a representation only
Manufacturer
Manufacturer No
LV8734V-TLM-H
Package
44-LSSOP (0.220", 5.60mm Width) Exposed Pad
Packaging
Bulk
Description
STEPPER MOTOR DRIVER, PWM, CONST
Detailed Description
Bipolar Motor Driver BiCDMOS Parallel 44-SSOP
Datasheet
Function
Driver - Fully Integrated, Control and Power Stage
Interface
Parallel
Packaging
Bulk
Technology
BiCDMOS
Applications
General Purpose
Manufacturer
Sanyo
Mounting Type
Surface Mount
Package / Case
44-LSSOP (0.220", 5.60mm Width) Exposed Pad
Voltage - Load
9V ~ 32V
Step Resolution
1, 1/2, 1/4, 1/8
Current - Output
1.5A
Voltage - Supply
0V ~ 5.5V
Base Product Number
LV8734
Motor Type - AC, DC
Brushed DC
Motor Type - Stepper
Bipolar
Output Configuration
Half Bridge (4)
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
44-SSOP
| Attribute | Value |
|---|---|
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel |
| Packaging | Bulk |
| Technology | BiCDMOS |
| Applications | General Purpose |
| Manufacturer | Sanyo |
| Mounting Type | Surface Mount |
| Package / Case | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad |
| Voltage - Load | 9V ~ 32V |
| Step Resolution | 1, 1/2, 1/4, 1/8 |
| Current - Output | 1.5A |
| Voltage - Supply | 0V ~ 5.5V |
| Base Product Number | LV8734 |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (4) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 44-SSOP |
