Step1: Product
Sanyo Denki America Inc. 9G0624P4S0011

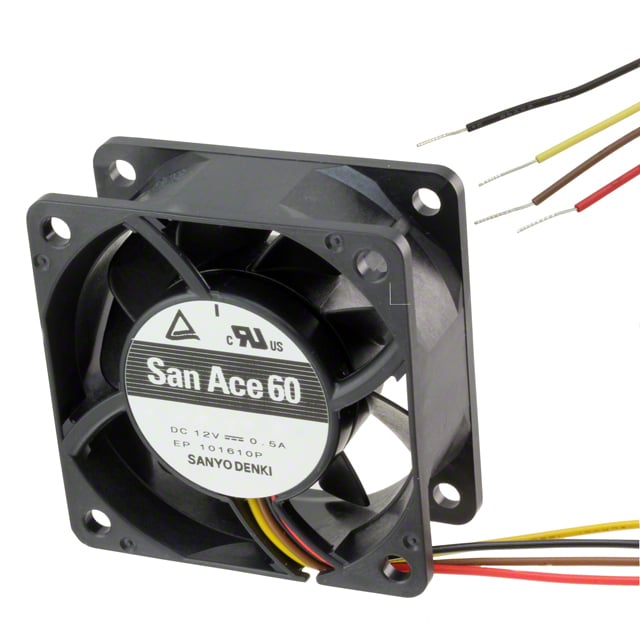

Image shown is a representation only
Manufacturer
Manufacturer No
9G0624P4S0011
Packaging
Box
Description
FAN AXIAL 60X25MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 49.4 CFM (1.38m³/min) 4 Wire Leads
DataSheet
Mfr
Sanyo Denki America Inc.
RPM
11000 RPM
Noise
53.0dB(A)
Width
25.00mm
Series
San Ace 60
Weight
0.199 lb (90.26 g)
Air Flow
49.4 CFM (1.38m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
8.16 W
Voltage Range
20.4 ~ 27.6VDC
Approval Agency
CSA, TUV, UL
Static Pressure
1.200 in H2O (298.9 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
40000 Hrs @ 60°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 60mm L x 60mm H
Base Product Number
9G0624
Current Rating (Amps)
0.340A
Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Sanyo Denki America Inc. |
| RPM | 11000 RPM |
| Noise | 53.0dB(A) |
| Width | 25.00mm |
| Series | San Ace 60 |
| Weight | 0.199 lb (90.26 g) |
| Air Flow | 49.4 CFM (1.38m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 8.16 W |
| Voltage Range | 20.4 ~ 27.6VDC |
| Approval Agency | CSA, TUV, UL |
| Static Pressure | 1.200 in H2O (298.9 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 40000 Hrs @ 60°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 60mm L x 60mm H |
| Base Product Number | 9G0624 |
| Current Rating (Amps) | 0.340A |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
