Step1: Product
Sanken Electric USA Inc. STR-A6069MZ

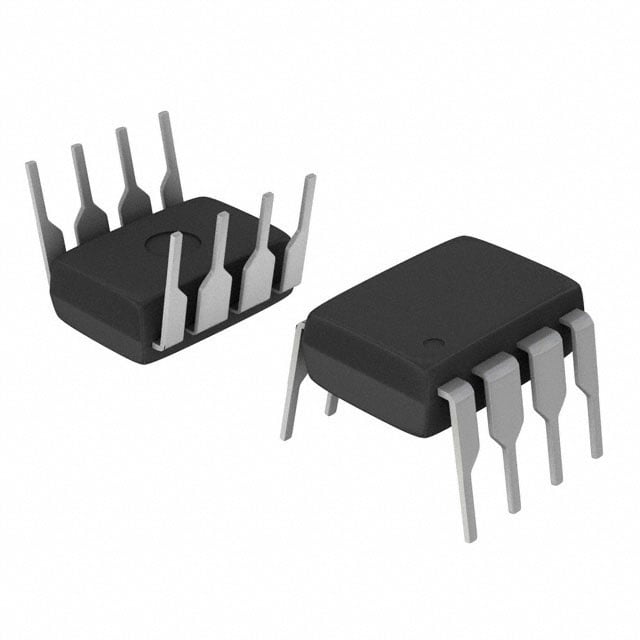

Image shown is a representation only
Manufacturer
Manufacturer No
STR-A6069MZ
Package
8-DIP (0.300", 7.62mm), 7 Leads
Packaging
Tube
Description
AC/DC CONVERTER IC (INTEGRATED M
Detailed Description
Converter Offline Flyback Topology 67kHz 8-DIP
DataSheet
Topology
Flyback
Packaging
Tube
Duty Cycle
75%
Part Status
Active
Manufacturer
Sanken Electric USA Inc.
Mounting Type
Through Hole
Power (Watts)
26 W
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Control Features
Soft Start
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Start Up
47 V
Base Product Number
STR-A6069
Voltage - Breakdown
700V
Frequency - Switching
67kHz
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
8-DIP
Voltage - Supply (Vcc/Vdd)
8.5V ~ 32V
| Attribute | Value |
|---|---|
| Topology | Flyback |
| Packaging | Tube |
| Duty Cycle | 75% |
| Part Status | Active |
| Manufacturer | Sanken Electric USA Inc. |
| Mounting Type | Through Hole |
| Power (Watts) | 26 W |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Control Features | Soft Start |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Start Up | 47 V |
| Base Product Number | STR-A6069 |
| Voltage - Breakdown | 700V |
| Frequency - Switching | 67kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 8-DIP |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 32V |
