Step1: Product
Sanken Electric USA Inc. SMA4021

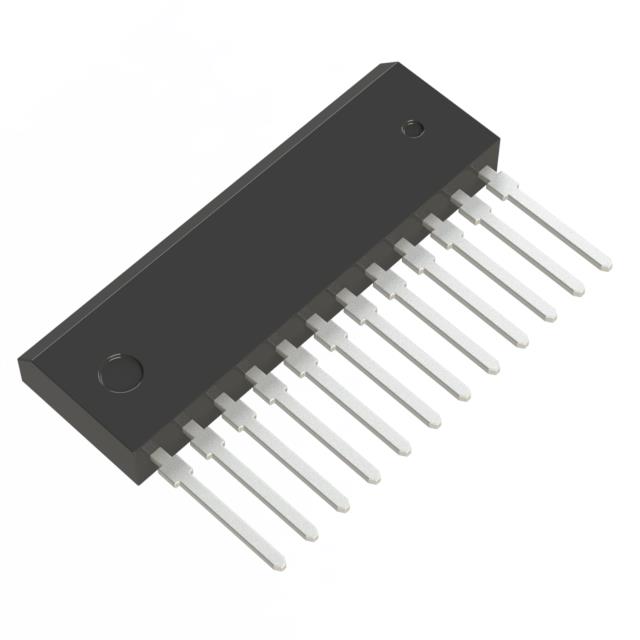

Image shown is a representation only
Manufacturer
Manufacturer No
SMA4021
Package
12-SIP
Packaging
Tube
Description
TRANS 4PNP DARL 60V 3A 12-SIP
Detailed Description
Bipolar (BJT) Transistor Array 4 PNP Darlington (Quad) 60V 3A 4W Through Hole 12-SIP
DataSheet
Packaging
Tube
Part Status
Obsolete
Power - Max
4W
Manufacturer
Sanken Electric USA Inc.
Mounting Type
Through Hole
Package / Case
12-SIP
Transistor Type
4 PNP Darlington (Quad)
Base Product Number
SMA40
Operating Temperature
150°C (TJ)
Supplier Device Package
12-SIP
Vce Saturation (Max) @ Ib, Ic
1.5V @ 4mA, 2A
Current - Collector (Ic) (Max)
3A
Current - Collector Cutoff (Max)
10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
2000 @ 2A, 4V
Voltage - Collector Emitter Breakdown (Max)
60V
| Attribute | Value |
|---|---|
| Packaging | Tube |
| Part Status | Obsolete |
| Power - Max | 4W |
| Manufacturer | Sanken Electric USA Inc. |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP |
| Transistor Type | 4 PNP Darlington (Quad) |
| Base Product Number | SMA40 |
| Operating Temperature | 150°C (TJ) |
| Supplier Device Package | 12-SIP |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 4mA, 2A |
| Current - Collector (Ic) (Max) | 3A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 2000 @ 2A, 4V |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
