Step1: Product
Sanan Power Semiconductor SDS120J002D3-ISARH

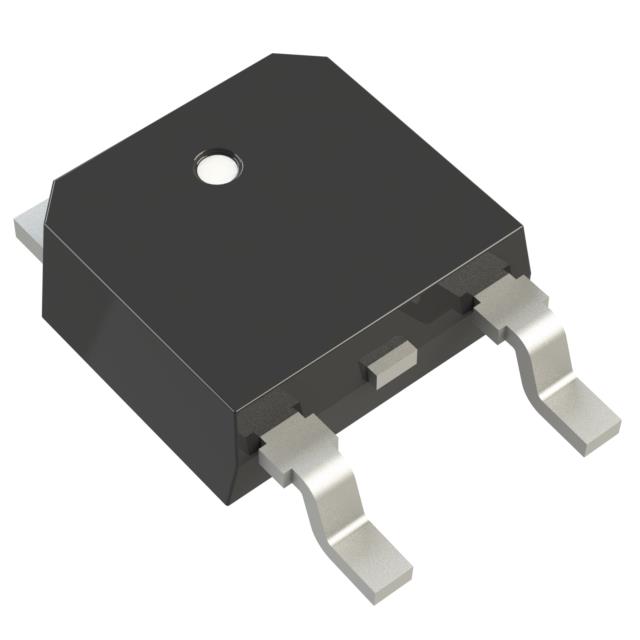

Image shown is a representation only
Manufacturer
Manufacturer No
SDS120J002D3-ISARH
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIODE SIL CARB 1200V 11A TO2522L
Detailed Description
Diode 1200 V 11A Surface Mount TO-252-2L
DataSheet
Mfr
Sanan Power Semiconductor
Speed
Zero Recovery Time > 500mA (Io)
Series
Sanan TO252
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Capacitance @ Vr, F
165pF @ 0V, 1MHz
Supplier Device Package
TO-252-2L
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
8 µA @ 1200 V
Voltage - DC Reverse (Vr) (Max)
1200 V
Current - Average Rectified (Io)
11A
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.5 V @ 2 A
| Attribute | Value |
|---|---|
| Mfr | Sanan Power Semiconductor |
| Speed | Zero Recovery Time > 500mA (Io) |
| Series | Sanan TO252 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Capacitance @ Vr, F | 165pF @ 0V, 1MHz |
| Supplier Device Package | TO-252-2L |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 8 µA @ 1200 V |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 11A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 2 A |
