Step1: Product

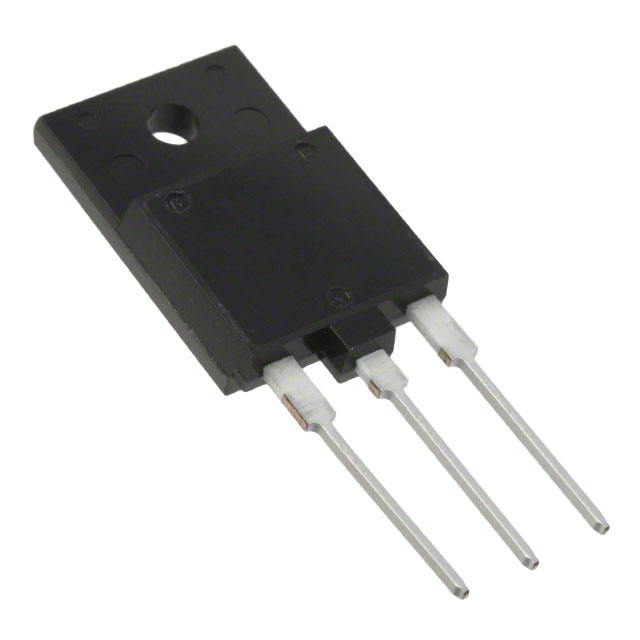

Sanan Power Semiconductor SDS065J020W3-ISATH
Image shown is a representation only
Manufacturer
Manufacturer No
SDS065J020W3-ISATH
Package
TO-3P-3 Full Pack
Packaging
Tube
Description
DIODE ARRAY SIC 650V 20A TO-3PF
Detailed Description
Diode Array 1 Pair Common Cathode 650 V 20A Through Hole TO-3P-3 Full Pack
DataSheet
Speed
No Recovery Time > 500mA (Io)
Series
Sanan TO3PF
Packaging
Tube
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Manufacturer
Sanan Power Semiconductor
Mounting Type
Through Hole
Package / Case
TO-3P-3 Full Pack
Diode Configuration
1 Pair Common Cathode
Supplier Device Package
TO-3PF
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
30 µA @ 650 V
Voltage - DC Reverse (Vr) (Max)
650 V
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.3 V @ 20 A
Current - Average Rectified (Io) (per Diode)
20A
| Attribute | Value |
|---|---|
| Speed | No Recovery Time > 500mA (Io) |
| Series | Sanan TO3PF |
| Packaging | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Manufacturer | Sanan Power Semiconductor |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 Full Pack |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | TO-3PF |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 30 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 20 A |
| Current - Average Rectified (Io) (per Diode) | 20A |
