Step1: Product

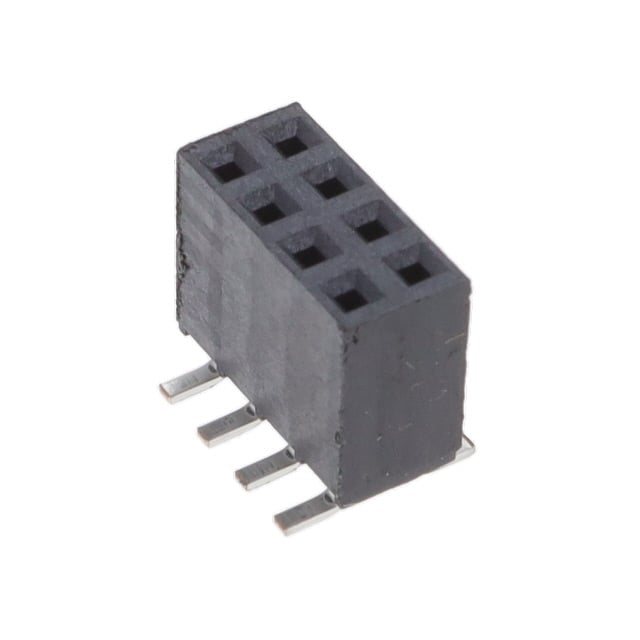

Samtec Inc. SSW-104-22-F-D-VS-K-TR
Image shown is a representation only
Manufacturer
Manufacturer No
SSW-104-22-F-D-VS-K-TR
Quantity
104
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCPT 8POS 0.1 GOLD SMD
Detailed Description
8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Datasheet
Mfr
Samtec Inc.
Style
Board to Board or Cable
Series
SSW
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Contact Type
Forked
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Base Product Number
SSW-104
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
8
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Current Rating (Amps)
4.7A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
3.00µin (0.076µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board or Cable |
| Series | SSW |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Base Product Number | SSW-104 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 4.7A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
