Step1: Product

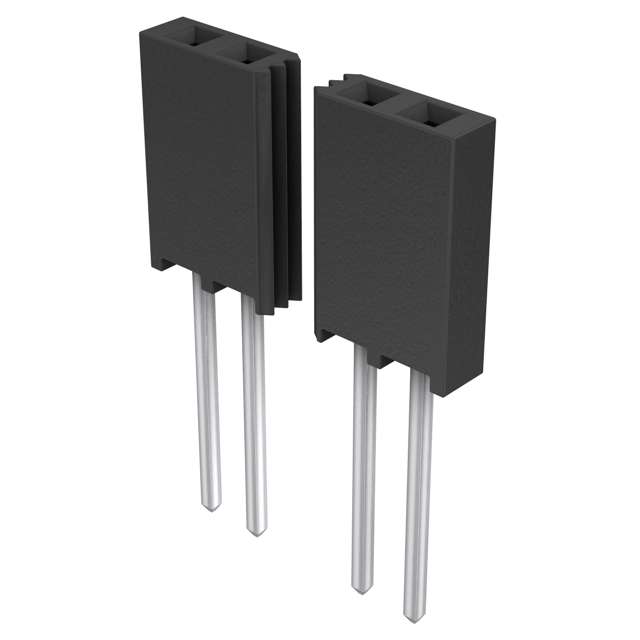

Samtec Inc. SSQ-110-03-T-S
Image shown is a representation only
Manufacturer
Manufacturer No
SSQ-110-03-T-S
Quantity
122
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT 10POS 0.1 TIN PCB
Detailed Description
10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
DataSheet
Mfr
Samtec Inc.
Style
Board to Board or Cable
Series
SSQ
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Forked
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
465VAC, 655VDC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Base Product Number
SSQ-110
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
10
Contact Finish - Post
Tin
Contact Length - Post
0.394" (10.00mm)
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board or Cable |
| Series | SSQ |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 465VAC, 655VDC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Base Product Number | SSQ-110 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.394" (10.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
