Step1: Product
Samtec Inc. SSA-132-W-T-RA

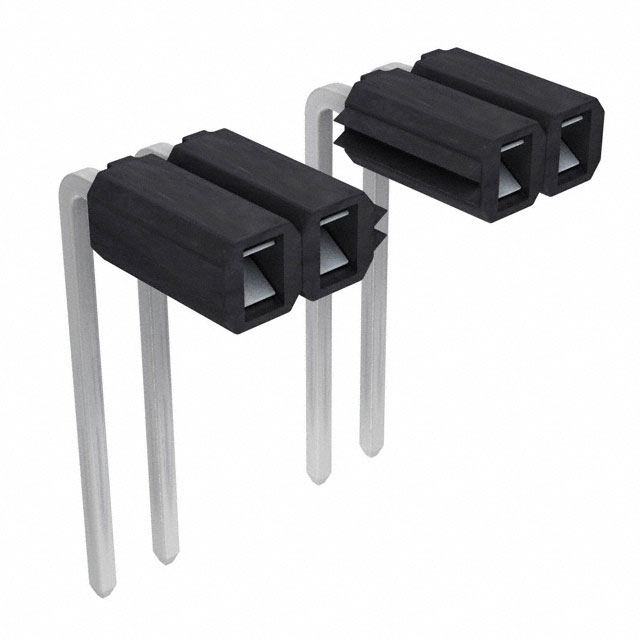

Image shown is a representation only
Manufacturer
Manufacturer No
SSA-132-W-T-RA
Quantity
8
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT 32POS 0.1 TIN PCB R/A
Detailed Description
32 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
DataSheet
Mfr
Samtec Inc.
Style
Board to Board
Series
SSA
Packaging
Bulk
Part Status
Active
Termination
Wire Wrap
Contact Type
Female Socket
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Breakaway
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
1000V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.100" (2.54mm)
Base Product Number
SSA-132
Insulation Material
Polyethylene Terephthalate (PET), Polyester
Number of Positions
32
Contact Length - Post
0.575" (14.61mm)
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board |
| Series | SSA |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Wire Wrap |
| Contact Type | Female Socket |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 1000V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Base Product Number | SSA-132 |
| Insulation Material | Polyethylene Terephthalate (PET), Polyester |
| Number of Positions | 32 |
| Contact Length - Post | 0.575" (14.61mm) |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
