Step1: Product

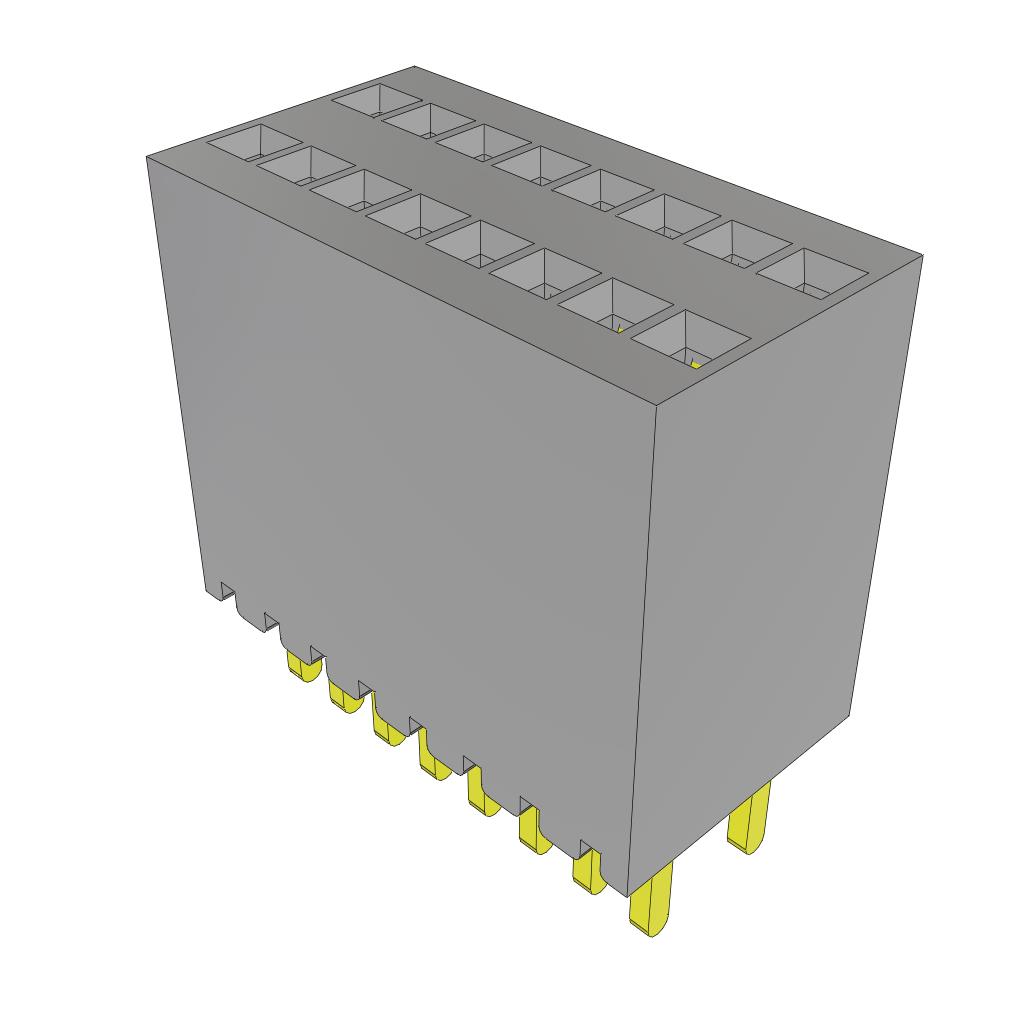

Samtec Inc. SMS-108-01-G-D
Image shown is a representation only
Manufacturer
Manufacturer No
SMS-108-01-G-D
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN SKT .050" 16POS
Detailed Description
16 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Datasheet
Mfr
Samtec Inc.
Style
Board to Board
Series
SMS
Packaging
Bulk
Termination
Solder
Contact Type
Forked
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Base Product Number
SMS-108
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
16
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Contact Length - Post
0.100" (2.54mm)
Current Rating (Amps)
5A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Post
3.00µin (0.076µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board |
| Series | SMS |
| Packaging | Bulk |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Base Product Number | SMS-108 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.100" (2.54mm) |
| Current Rating (Amps) | 5A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
