Step1: Product
Samtec Inc. CLE-130-01-G-DV-P

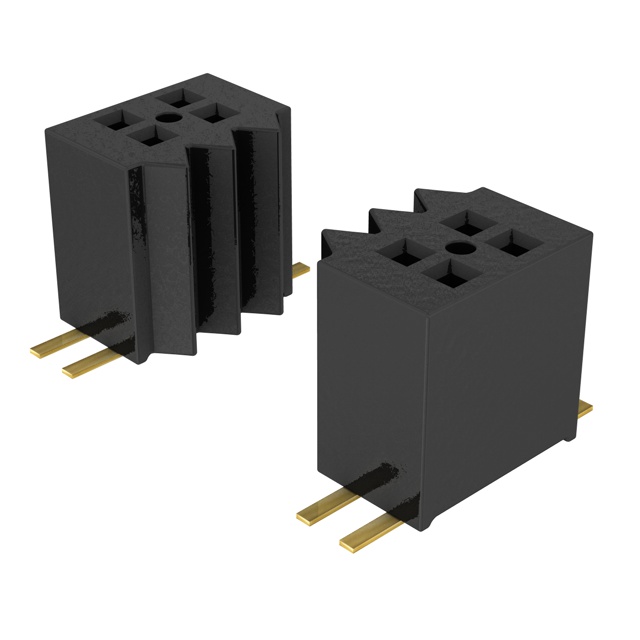

Image shown is a representation only
Manufacturer
Manufacturer No
CLE-130-01-G-DV-P
Quantity
10
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 60POS 0.031 GOLD SMD
Detailed Description
60 Position Receptacle, Pass Through Connector 0.031" (0.80mm) Surface Mount Gold
Datasheet
Mfr
Samtec Inc.
Style
Board to Board
Series
CLE
Features
Pick and Place
Packaging
Tube
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Pass Through
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.031" (0.80mm)
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.130" (3.30mm)
Base Product Number
CLE-130
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
60
Row Spacing - Mating
0.047" (1.20mm)
Contact Finish - Post
Gold
Current Rating (Amps)
2.7A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
10.0µin (0.25µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Style | Board to Board |
| Series | CLE |
| Features | Pick and Place |
| Packaging | Tube |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Pass Through |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.031" (0.80mm) |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.130" (3.30mm) |
| Base Product Number | CLE-130 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 60 |
| Row Spacing - Mating | 0.047" (1.20mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 2.7A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
