Step1: Product
Same Sky (Formerly CUI Devices) RDS-16S-1055-SMT

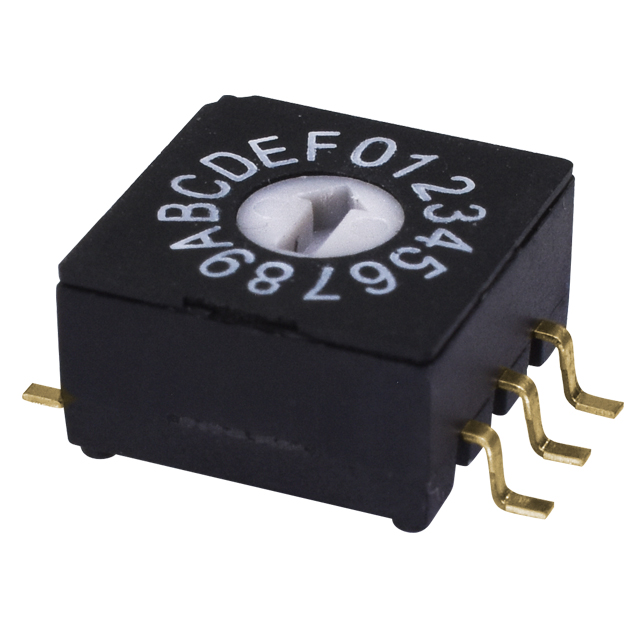

Image shown is a representation only
Manufacturer
Manufacturer No
RDS-16S-1055-SMT
Packaging
Tube
Description
SWITCH ROTARY DIP HEX 0.025A 24V
Detailed Description
Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 25mA 24VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.394" (10.00mm)
Series
RDS-1055-SMT
Circuit
Hexadecimal
Washable
No
Packaging
Tube
Part Status
Active
Manufacturer
Same Sky (Formerly CUI Devices)
Actuator Type
Rotary for Tool
Body Material
Polyamide (PA9T)
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Electrical Life
10,000 Steps
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.217" (5.50mm)
Base Product Number
RDS-16S
Number of Positions
16
Current Rating (Amps)
25mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.394" (10.00mm) |
| Series | RDS-1055-SMT |
| Circuit | Hexadecimal |
| Washable | No |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Actuator Type | Rotary for Tool |
| Body Material | Polyamide (PA9T) |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 10,000 Steps |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.217" (5.50mm) |
| Base Product Number | RDS-16S |
| Number of Positions | 16 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -40°C ~ 85°C |
