Step1: Product

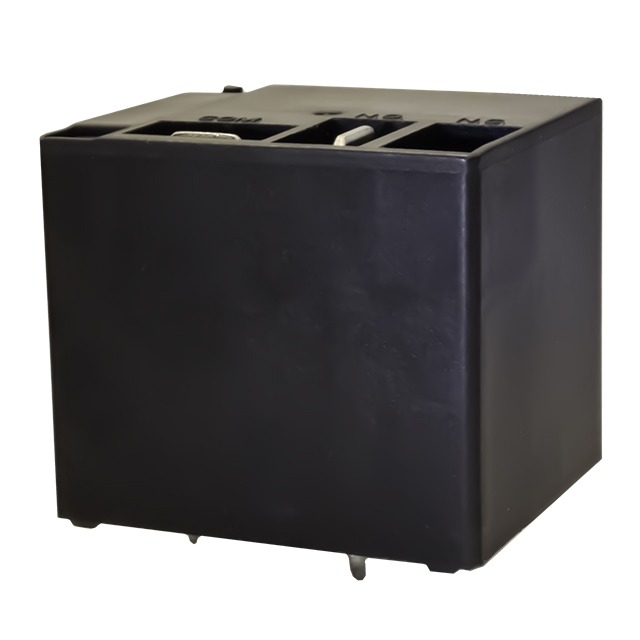

Same Sky (Formerly CUI Devices) PR27-24V-S-900-1A-E
Image shown is a representation only
Manufacturer
Manufacturer No
PR27-24V-S-900-1A-E
Packaging
Box
Description
32.23 X 27.4 X 27.92 MM, 24 V, 4
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Series
PR27
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Fully
Coil Current
36.4 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
cURus
Coil Insulation
Class B
Coil Resistance
660 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
300VAC, 30VDC - Max
Termination Style
PC Pin, Quick Connect - 0.250" (6.3mm)
Load - Max Switching
10000VA, 900W
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-55°C ~ 85°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Series | PR27 |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Fully |
| Coil Current | 36.4 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus |
| Coil Insulation | Class B |
| Coil Resistance | 660 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 300VAC, 30VDC - Max |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Load - Max Switching | 10000VA, 900W |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -55°C ~ 85°C |
| Contact Rating (Current) | 40 A |
