Step1: Product

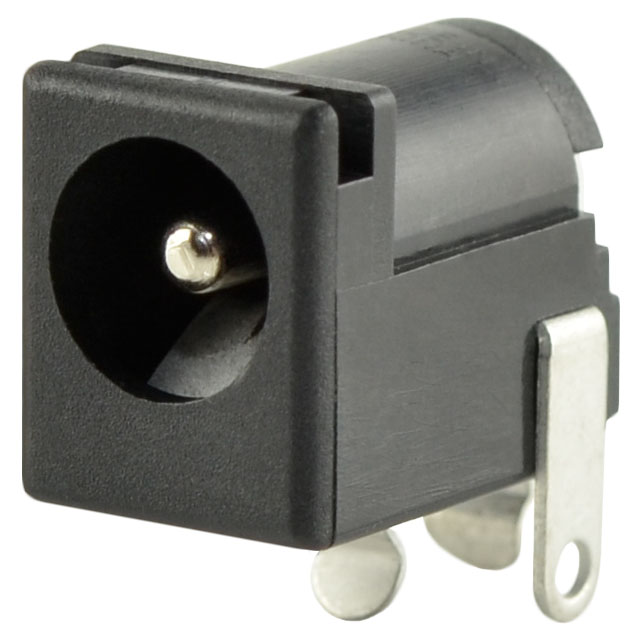

Same Sky (Formerly CUI Devices) PJ-202B
Image shown is a representation only
Manufacturer
Manufacturer No
PJ-202B
Packaging
Bag
Description
CONN PWR JACK 2.5X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
DataSheet
Gender
Male
Packaging
Bag
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Kinked Pin, Solder Eyelet
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.256" (6.50mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
PJ-202
Mating Length/Depth
0.354" (9.00mm)
Current Rating (Amps)
2.5 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Kinked Pin, Solder Eyelet |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.256" (6.50mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | PJ-202 |
| Mating Length/Depth | 0.354" (9.00mm) |
| Current Rating (Amps) | 2.5 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
