Step1: Product
Same Sky (Formerly CUI Devices) PJ-108BH

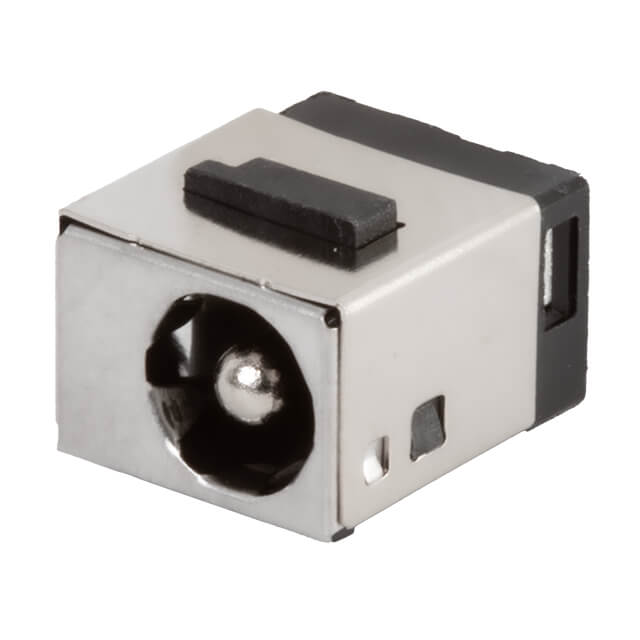

Image shown is a representation only
Manufacturer
Manufacturer No
PJ-108BH
Packaging
Box
Description
2.5 X 5.9 MM, 5.0 A, VERTICAL, P
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole
DataSheet
Gender
Male
Packaging
Box
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Through Hole
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.232" (5.90mm OD)
Voltage - Rated
20VDC
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.329" (8.35mm)
Current Rating (Amps)
5 A
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Nickel, Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Packaging | Box |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.232" (5.90mm OD) |
| Voltage - Rated | 20VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.329" (8.35mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Nickel, Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
