Step1: Product

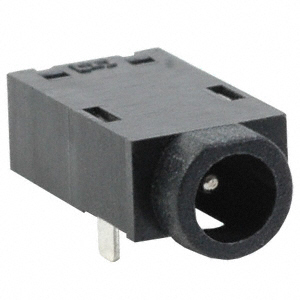

Same Sky (Formerly CUI Devices) PJ-041-SMT-TR
Image shown is a representation only
Manufacturer
Manufacturer No
PJ-041-SMT-TR
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN PWR JACK 0.7X2.35MM SOLDER
Detailed Description
Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle
Datasheet
Gender
Male
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Body Color
Black
Termination
Solder
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.026" (0.65mm ID), 0.102" (2.60mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Copper Alloy
Housing Material
Polyamide (PA6T), Nylon 6T
Internal Switch(s)
Does Not Contain Switch
Base Product Number
PJ-041
Mating Length/Depth
0.303" (7.70mm)
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.026" (0.65mm ID), 0.102" (2.60mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Copper Alloy |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | PJ-041 |
| Mating Length/Depth | 0.303" (7.70mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 |
