Step1: Product

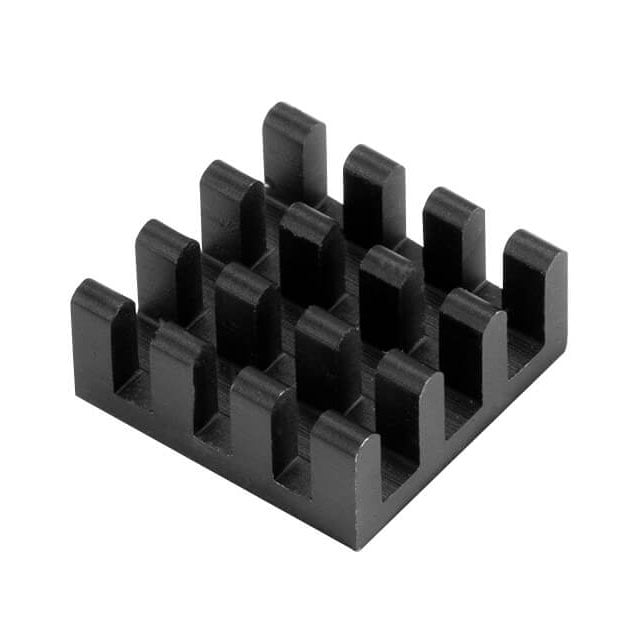

Same Sky (Formerly CUI Devices) HSB03-141406
Image shown is a representation only
Manufacturer
Manufacturer No
HSB03-141406
Packaging
Box
Description
HEAT SINK, BGA, 14 X 14 X 6 MM
Detailed Description
Heat Sink BGA Aluminum Alloy 2.1W @ 75°C Top Mount
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Type
Top Mount
Shape
Square, Pin Fins
Width
0.551" (14.00mm)
Length
0.551" (14.00mm)
Series
HSB
Material
Aluminum Alloy
Packaging
Box
Fin Height
0.236" (6.00mm)
Part Status
Active
Package Cooled
BGA
Material Finish
Black Anodized
Attachment Method
Adhesive (Not Included)
Thermal Resistance @ Natural
35.98°C/W
Power Dissipation @ Temperature Rise
2.1W @ 75°C
Thermal Resistance @ Forced Air Flow
15.80°C/W @ 200 LFM
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Type | Top Mount |
| Shape | Square, Pin Fins |
| Width | 0.551" (14.00mm) |
| Length | 0.551" (14.00mm) |
| Series | HSB |
| Material | Aluminum Alloy |
| Packaging | Box |
| Fin Height | 0.236" (6.00mm) |
| Part Status | Active |
| Package Cooled | BGA |
| Material Finish | Black Anodized |
| Attachment Method | Adhesive (Not Included) |
| Thermal Resistance @ Natural | 35.98°C/W |
| Power Dissipation @ Temperature Rise | 2.1W @ 75°C |
| Thermal Resistance @ Forced Air Flow | 15.80°C/W @ 200 LFM |
