Step1: Product

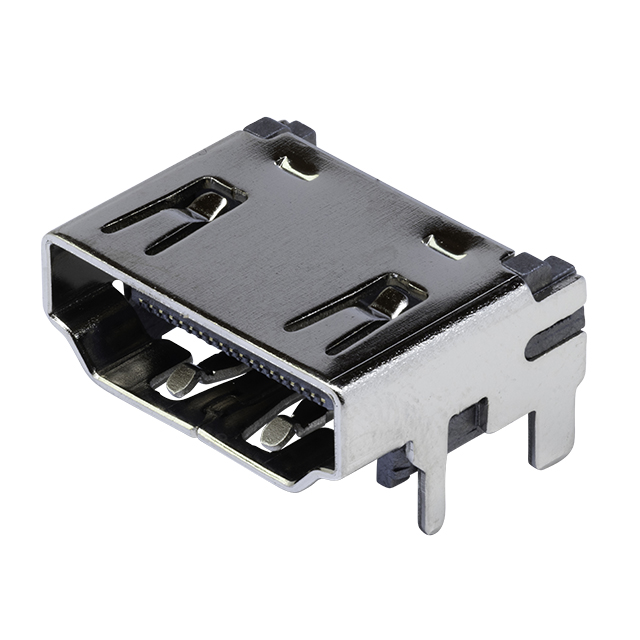

Same Sky (Formerly CUI Devices) HD05-19-TH-TR
Image shown is a representation only
Manufacturer
Manufacturer No
HD05-19-TH-TR
Quantity
258
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
HDMI 2.0, RECEPTACLE CONNECTOR,
Detailed Description
HDMI HDMI 2.0 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
DataSheet
Gender
Receptacle
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
Same Sky (Formerly CUI Devices)
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
HDMI
Contact Finish
Gold
Specifications
HDMI 2.0
Number of Ports
1
Voltage - Rated
40VAC
Insulation Color
Black
Mounting Feature
Horizontal
Number of Contacts
19
Current Rating (Amps)
0.5A
Operating Temperature
-25°C ~ 85°C
Shell/Shielding Material
Brass
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | HDMI |
| Contact Finish | Gold |
| Specifications | HDMI 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 40VAC |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Number of Contacts | 19 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -25°C ~ 85°C |
| Shell/Shielding Material | Brass |
| Material Flammability Rating | UL94 V-0 |
